Description
Product Overview

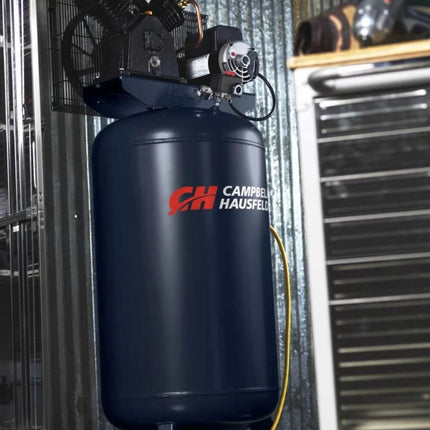

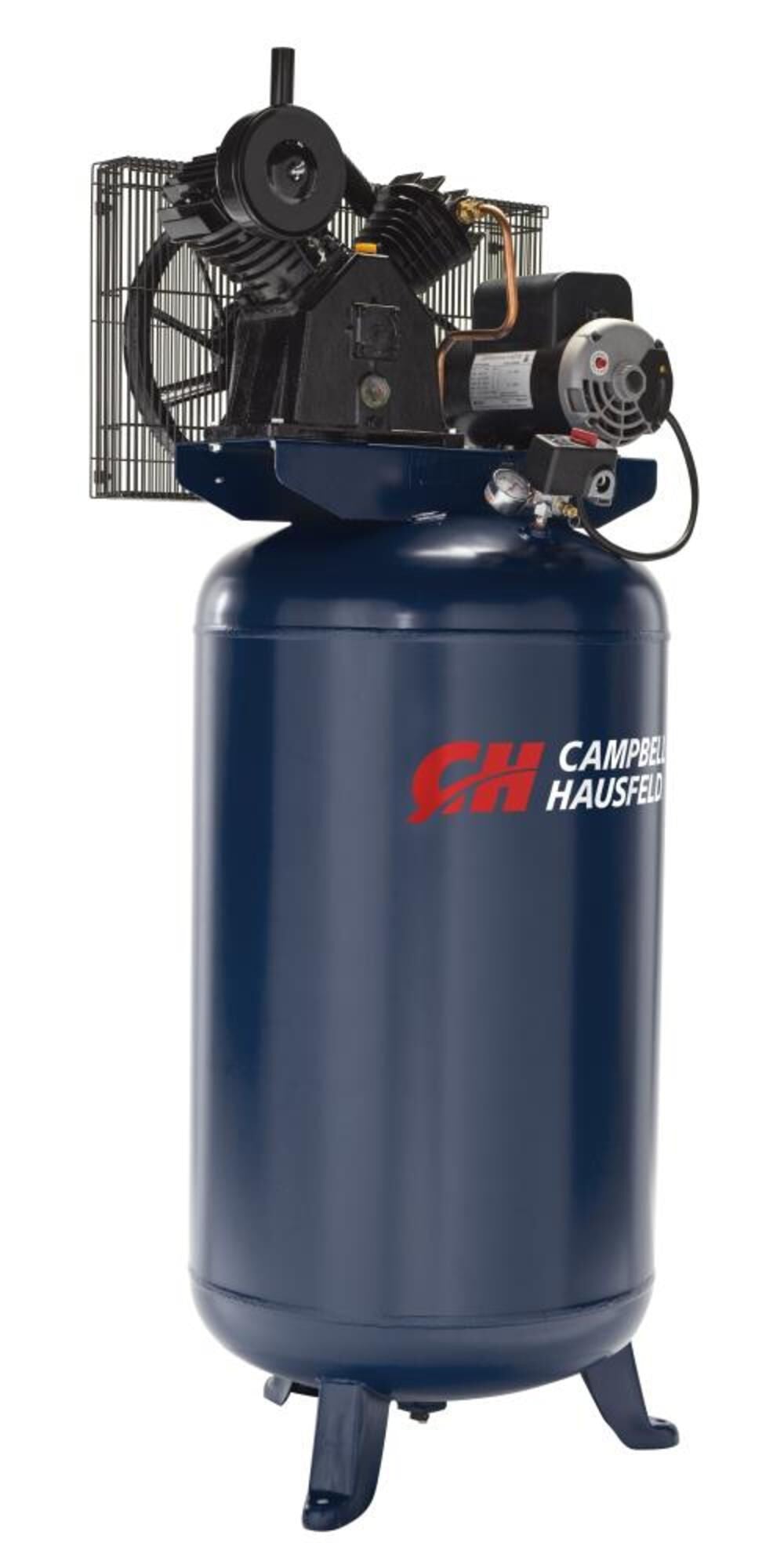

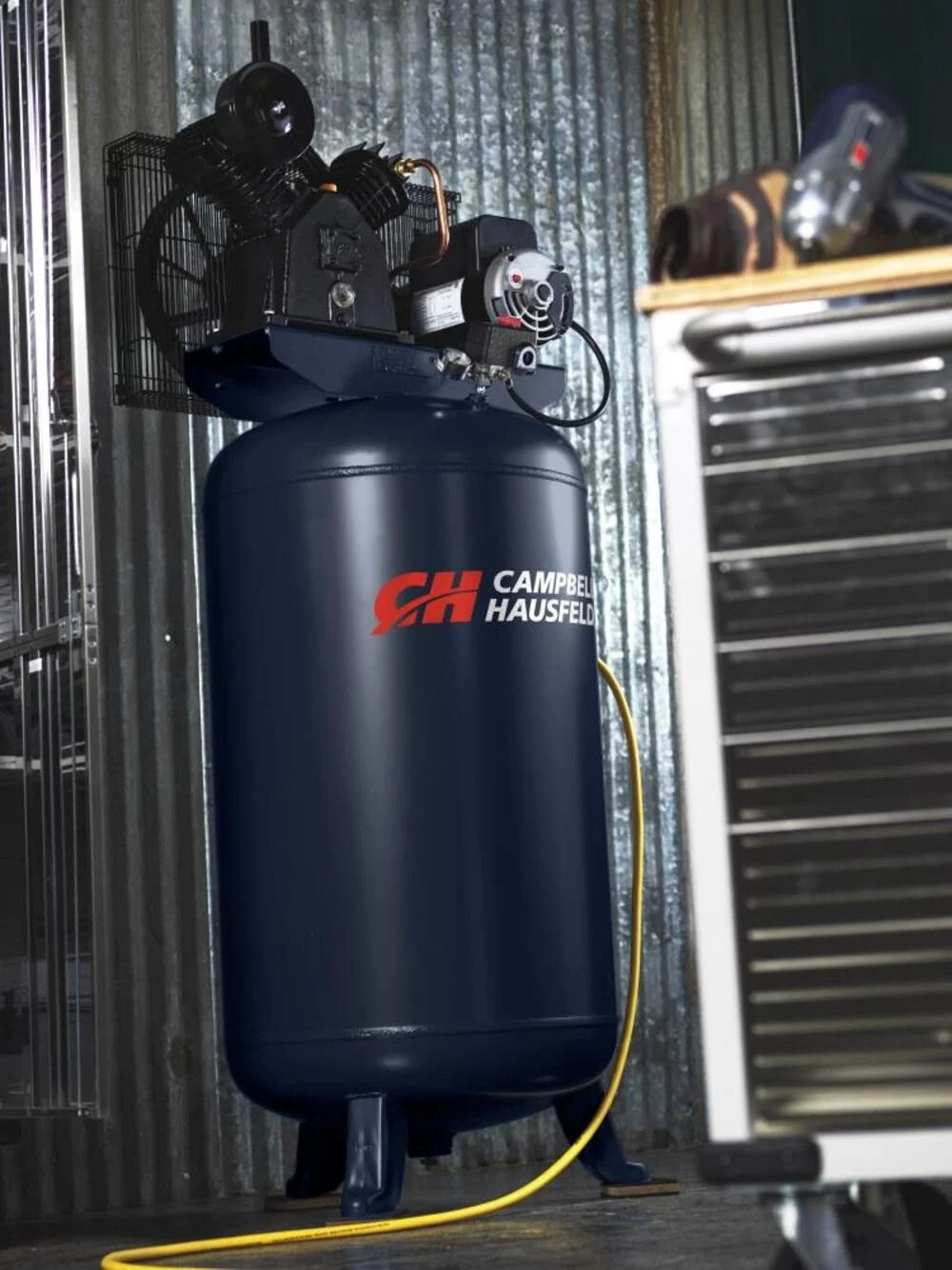

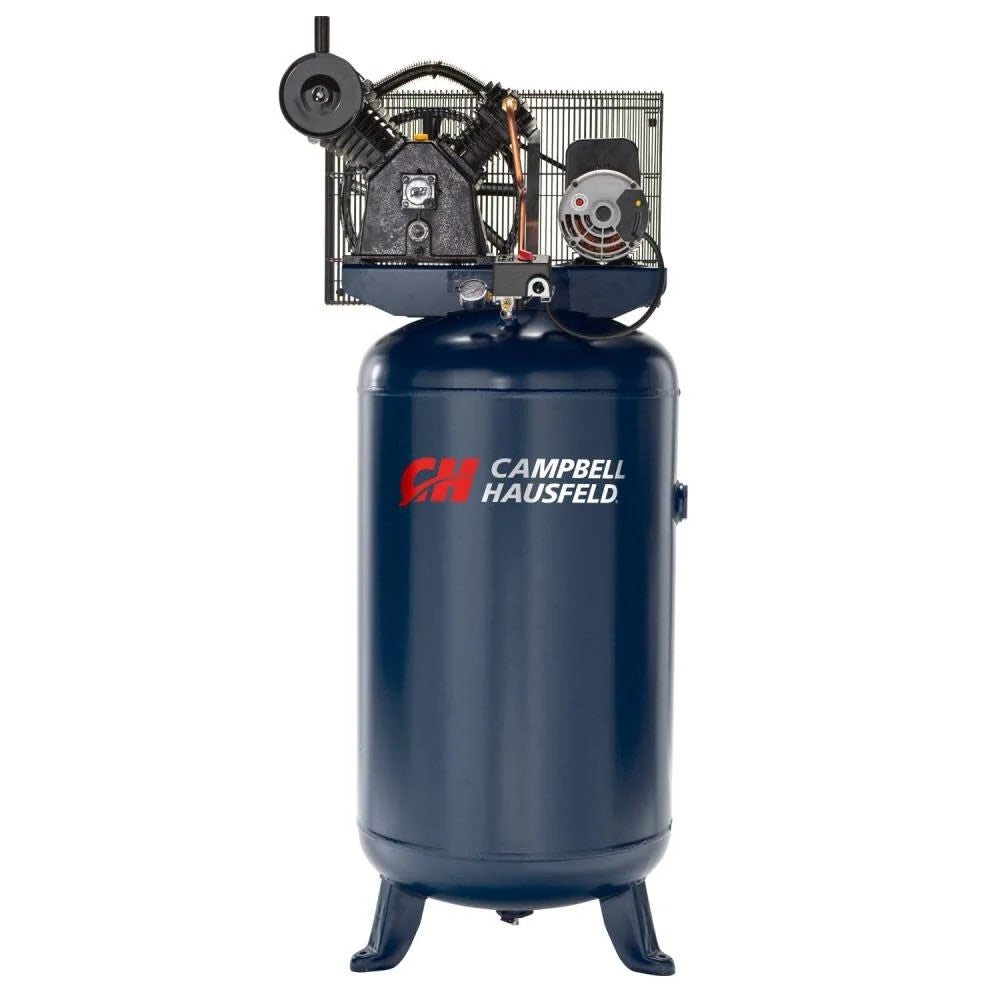

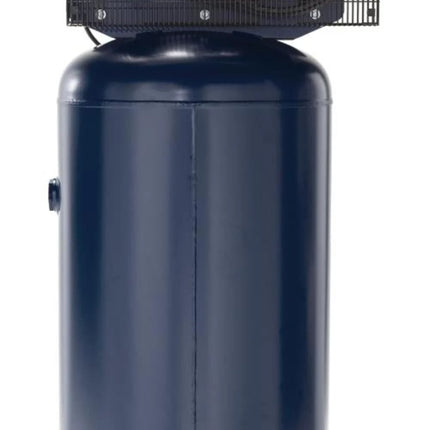

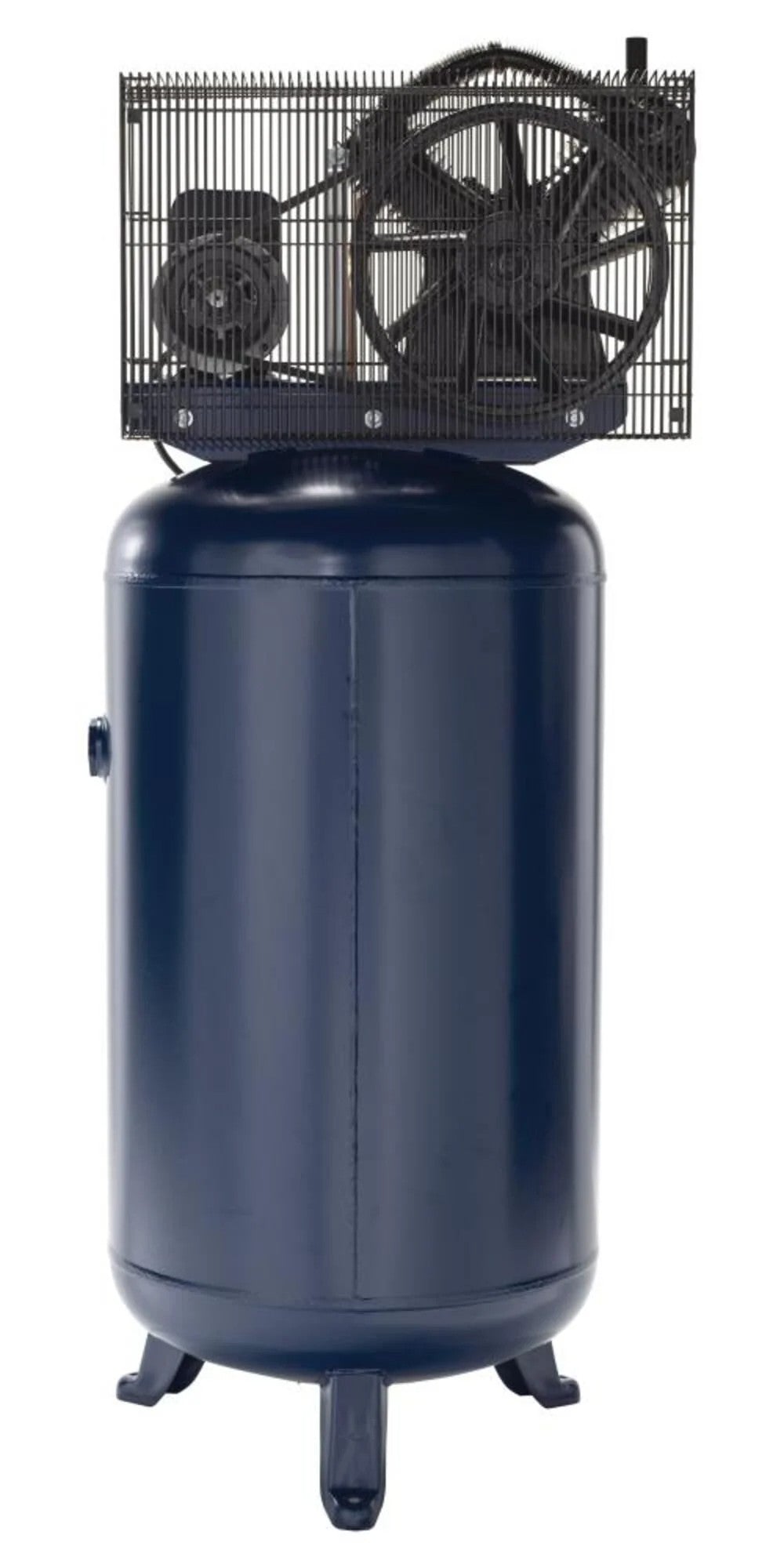

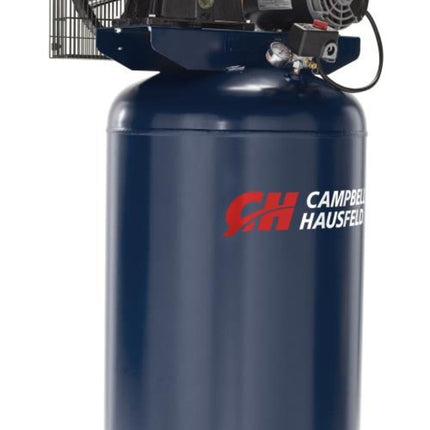

The Campbell Hausfeld CH Blue J 80-Gallon 2-Stage Electric Air Compressor (XC802100) is engineered for high-demand shop and garage applications, delivering reliable performance and enhanced durability. Its powerful 5 HP heavy-duty induction motor operates on 230V power, producing a maximum pressure of 175 PSI and 11.9 CFM at 90 PSI, ensuring optimum performance for a wide range of air tools.
Built with a cast iron, oil-lubricated 2-stage pump, this unit offers up to 5,000 hours of extended lifespan while maintaining reduced noise output. The 80-gallon ASME vertical tank maximizes air storage and saves valuable floor space, making it ideal for busy workshops, auto repair facilities, and industrial environments.

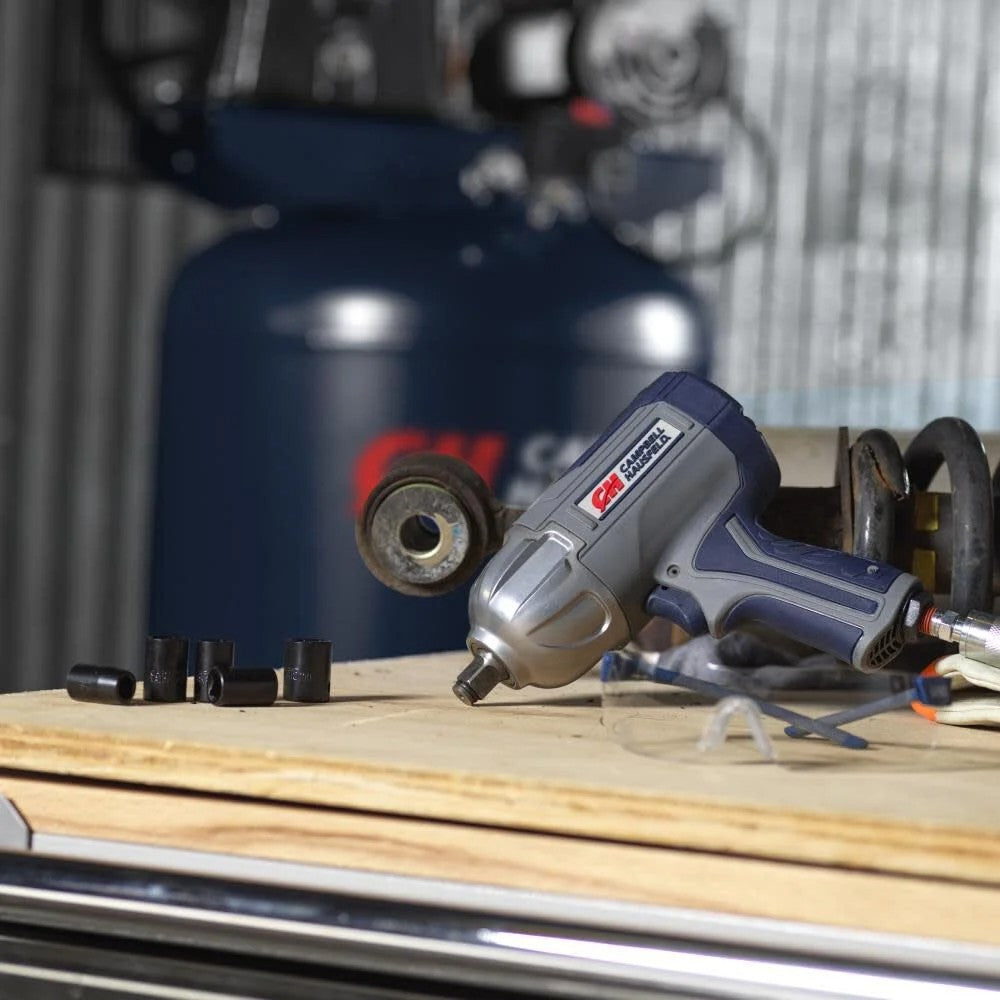

Whether you’re rotating tires, grinding welds, sanding, painting, or heavy-duty nailing, this compressor delivers the air power and efficiency you need to finish projects faster with professional results.
Key Features
Specifications
| Attribute |
Details |
| Brand |
Campbell Hausfeld |
| Model Number |
XC802100 |
| Power Source |
Electric |
| Horsepower (HP) |
5.0 |
| Motor Type |
Heavy-duty induction motor |
| Voltage |
230V |
| Amperage |
22A |
| Phase |
Single Phase |
| Tank Capacity |
80 gallons |
| Tank Configuration |
Single vertical tank |
| Tank Material |
Steel |
| Maximum Pressure |
175 PSI |
| SCFM @ 90 PSI |
11.9 CFM |
| Pump Design |
Cast iron, oil-lubricated, 2-stage |
| Compressor Design |
Vertical |
| Operating Position |
Vertical |
| Portable/Wheeled |
No |
| Tank Pressure Gauge |
Yes |
| Color |
Blue |
| Product Condition |
New |
| Height |
80 in. |
| Package Depth |
31 in. |
| Package Height |
81 in. |
| Assembled Weight |
410 lb. |
| Package Weight |
410 lb. |
| CSA Certified |
Yes |
| UL Listed |
No |
| ETL Listed |
No |
| Country of Origin |
China |
| Warranty |
3-Year Limited Warranty |
| UPC |
045564643140 |
| California Proposition 65 Warning Required |
Yes |
Included in Package
Ideal Applications
Why Choose Campbell Hausfeld?
As “The Air Power Expert®,” Campbell Hausfeld delivers quality, durability, and superior performance in all their compressors. The CH Blue J 80-Gallon 2-Stage Air Compressor combines robust engineering with operational efficiency, ensuring your tools have the power they need to keep productivity high.
