Description

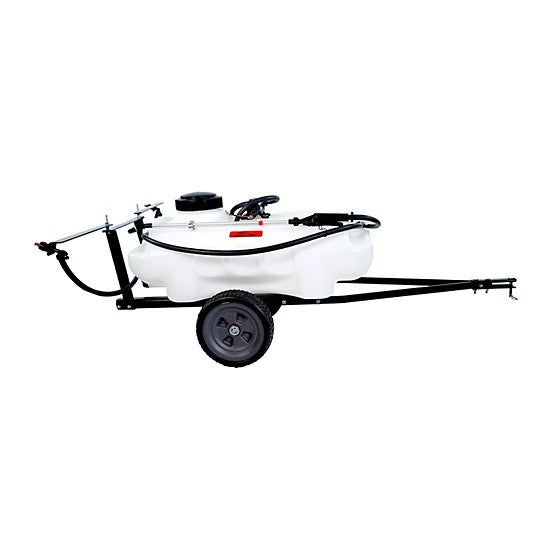

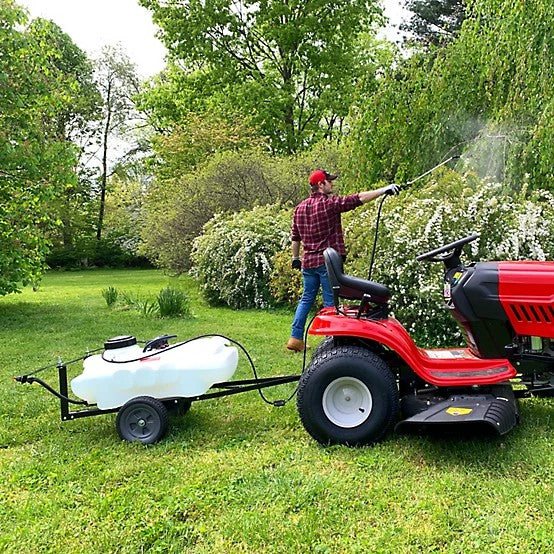

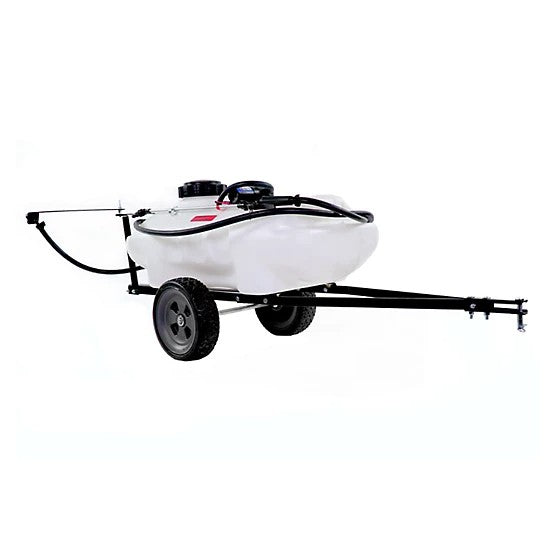

Take lawn and garden maintenance to the next level with the Brinly 15-Gallon Tow Sprayer, engineered for fast, even, and efficient application of fertilizers, herbicides, insecticides, and water. Designed for compatibility with all lawn and garden tractors, this sprayer attaches effortlessly via the included hitch pin and tows behind for hands-free coverage across your yard or property.
Equipped with break-away collapsible booms, the sprayer provides a 70-inch spray swath while easily navigating tight areas like garden gates or trees. The industry-first upright, self-storing design reduces storage space to a compact 24" x 19" footprint, making it perfect for garages or sheds with limited room.
With a powerful 12V 1 GPM pump, dual filtration system, and a high-performance spray wand capable of reaching up to 28 ft. horizontally and 16 ft. vertically, this tow sprayer offers unmatched versatility for both broad coverage and spot treatment. Built tough with an all-steel frame, translucent tank, and never-flat tires, it’s made to last season after season.
Key Features
-

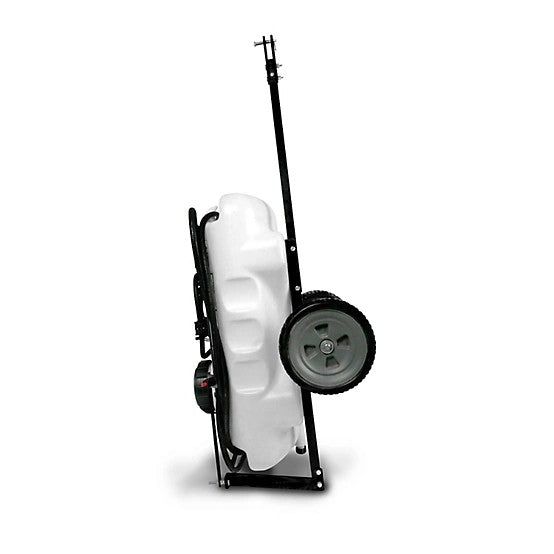

Compact Storage Footprint
Innovative vertical self-storing design occupies just 19" x 24" when not in use.
-

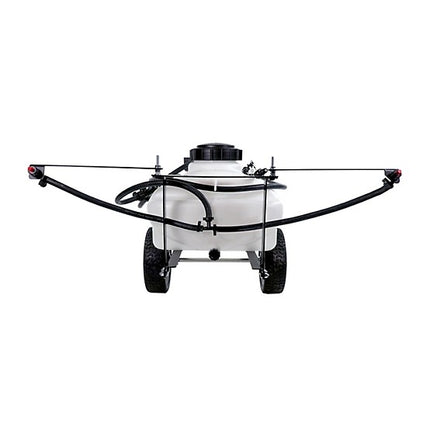

Collapsible Break-Away Spray Booms
Fold-out dual-nozzle booms provide 70" spray coverage and fold in for safe passage through tight areas or compact storage.
-
Durable 15-Gallon Polyethylene Tank
Translucent white tank resists dents and corrosion; includes an oversized screw cap for easy filling and mixing.
-
Powerful Electric Pump
12V pump delivers 1.0 GPM flow at 40 PSI, ideal for most lawn and garden liquid applications.
-
Reinforced Spray Wand with Extended Reach
Includes a 12 ft. hose and wand with a 28 ft. horizontal spray and 16 ft. vertical reach for hard-to-access spots.
-
Dual Filtration System
Protects pump and nozzles for a longer lifespan and consistent spray performance.
-
Smooth Terrain Navigation
Equipped with 10" x 3" never-flat tires for easy towing over rough or uneven ground.
-
Universal Hitch Compatibility
Attaches to most lawn and garden tractors using standard pin hitch connection (pin included).
-
Trusted American Craftsmanship
Built in the USA by Brinly-Hardy, a brand trusted since 1839 for high-quality and innovative outdoor equipment.
Specifications
| Attribute |
Details |
| Brand |
Brinly |
| Model Number |
ST-152BH |
| Tank Capacity |
15 Gallons |
| Tank Material |
Translucent Polyethylene |
| Sprayer Type |
Tow-Behind |
| Pump Type |
12V Centrifugal |
| Maximum Flow Rate |
1.0 GPM |
| Maximum Operating Pressure |
40 PSI |
| Spray Wand Reach |
28 ft. horizontal / 16 ft. vertical |
| Boom Coverage (Swath Width) |
70 in. |
| Nozzles |
2 Boom Nozzles + 1 Spray Wand |
| Hose Length |
12 ft. |
| Hose Diameter |
0.5 in. |
| Mounting Type |
Rear Pin Hitch |
| Compatible With |
Universal (John Deere, Husqvarna, Cub Cadet, etc.) |
| Recommended Chemicals |
Fertilizers, Herbicides, Insecticides, Fungicides, Water |
| Wheels |
10 in. x 3 in. Never-Flat Tires |
| Power Type |
12V Electric (Battery Required, not included) |
| Product Dimensions |
58 in. (W) x 19 in. (L) x 28 in. (H) |
| Storage Dimensions |
24 in. x 19 in. (vertical storage) |
| Product Weight |
39 lb. |
| Primary Color |
Black |
| Warranty |
2-Year Limited Warranty |
| Country of Origin |
Made in USA |
Included Components
-
15-Gallon Poly Tank
-
Dual Nozzle Break-Away Spray Booms
-
12V Pump (1.0 GPM, 40 PSI)
-
12 ft. Reinforced Hose with Spray Wand
-
Hitch Pin
-
Never-Flat Tires
