Description

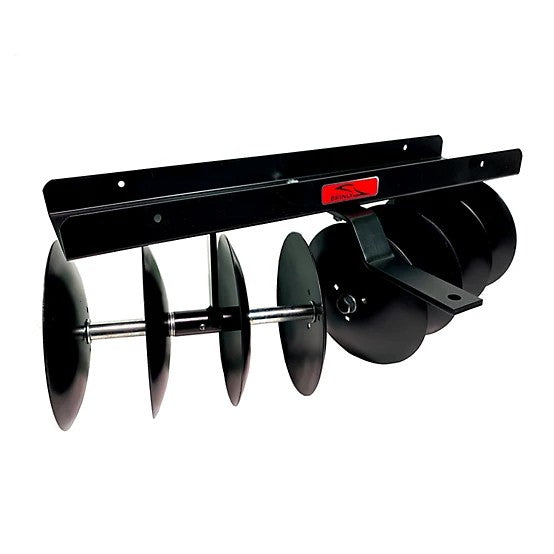

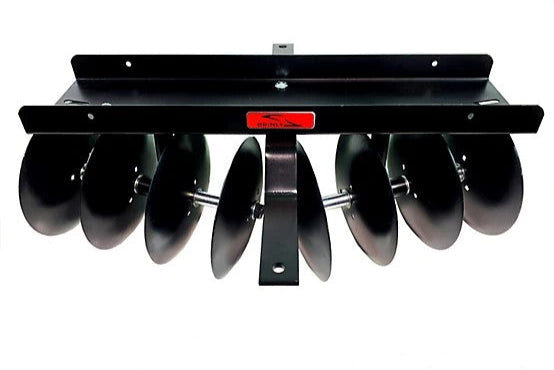

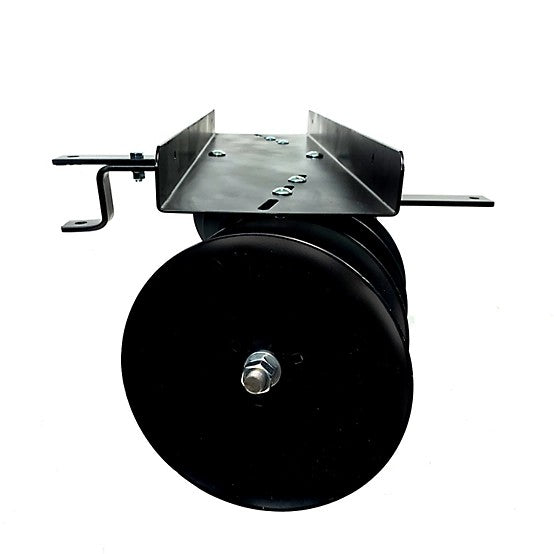

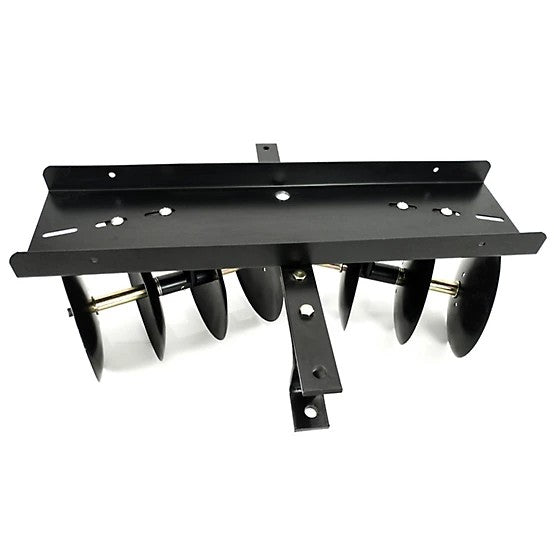

Achieve smooth, uniform, plant-ready soil with the Brinly 11 in. Sleeve Hitch Disc Harrow, designed to deliver high-performance discing for gardens, food plots, and landscaping projects. Engineered for both efficiency and precision, this harrow is ideal for breaking up rough, plowed soil and creating the perfect seedbed.
With a working width adjustable from 29 in. to 39 in., the Brinly Disc Harrow adapts to different plot sizes and terrain. The 8 heavy-duty 11 in. steel discs are built from 13-gauge steel and can be set at three cutting angles—10°, 15°, or 20°—to suit your soil and the aggressiveness required for your task. For added ground penetration on compacted or clay-heavy soil, the integrated weight tray supports extra weight for increased downforce.
To further maximize efficiency, two units can be assembled into a tandem gang, enabling dual-action tillage where the front discs throw soil outward and the rear discs throw inward—resulting in a perfectly leveled field.

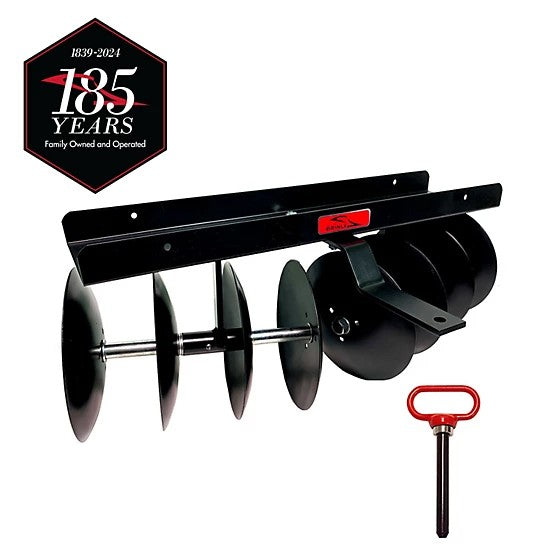

Included is a Magnetic Hitch Pin with a neodymium magnet and weatherproof plating—making it easy to hitch and unhitch while keeping the connection secure across bumpy terrain.
🔧 Key Features
-
Adjustable Working Width: Customizable from 29 in. to 39 in. to suit small gardens or larger plots.
-
3 Disc Angle Settings: Choose from 10°, 15°, or 20° for light to aggressive tilling.
-
Durable Steel Discs: Eight 11 in. discs made from 13-gauge steel offer reliable soil penetration.
-
Weight Tray Included: Add extra weight to the 11-gauge steel tray to enhance cutting power in tough soil.
-
Tandem Configuration Capability: Connect two units for greater coverage and superior discing action.
-
Magnetic Hitch Pin Included: Neodymium magnetic pin with weatherproof plating and easy-pull handle for quick, secure attachment.
-
Easy Maintenance: Grease fittings on disc hangers ensure long-term durability and smooth operation.
-
Sleeve Hitch Required: Compatible with any tractor featuring a sleeve hitch (sold separately).
-
ATV/UTV Compatibility: Use with Brinly One-Point Lift System (Models: OPL-BH or OPL-BH-A) for ATV or UTV applications.
-
Made in the USA: Built with quality materials and craftsmanship.
📐 Specifications
| Attribute |
Details |
| Brand |
Brinly |
| Model Number |
DD-55MHPK |
| Country of Origin |
Made in USA |
| Assembly Required |
Yes |
| Hitch Type |
Sleeve Hitch (Required, not included) |
| Magnetic Hitch Pin |
Included (neodymium magnet, weatherproof) |
| Working Width |
Adjustable: 29 in. – 39 in. |
| Blade Quantity |
8 |
| Blade Diameter |
11 in. |
| Blade Spacing |
5 in. |
| Blade Thickness |
0.0175 in. |
| Blade Type |
13-Gauge Steel |
| Disc Angle Adjustments |
10°, 15° (recommended), 20° |
| Weight Tray Capacity |
User-added weight supported |
| Axle Diameter |
0.75 in. |
| Frame Material |
Powder-Coated Steel |
| Primary Material |
Heavy-Duty Steel |
| Minimum Tractor Horsepower |
20 HP |
| Maximum Tractor Horsepower |
18 HP (Note: check for correction; may be reversed)
|
| Product Dimensions (L x W x H) |
26 in. x 31 in. x 14 in. |
| Product Weight |
54 lb. |
| Warranty |
2-Year Limited Warranty |
✅ Perfect For:
-
Garden tilling and soil prep
-
Food plots and landscaping
-
Leveling compacted or uneven ground
-
Multi-pass tandem discing for improved efficiency
