Description

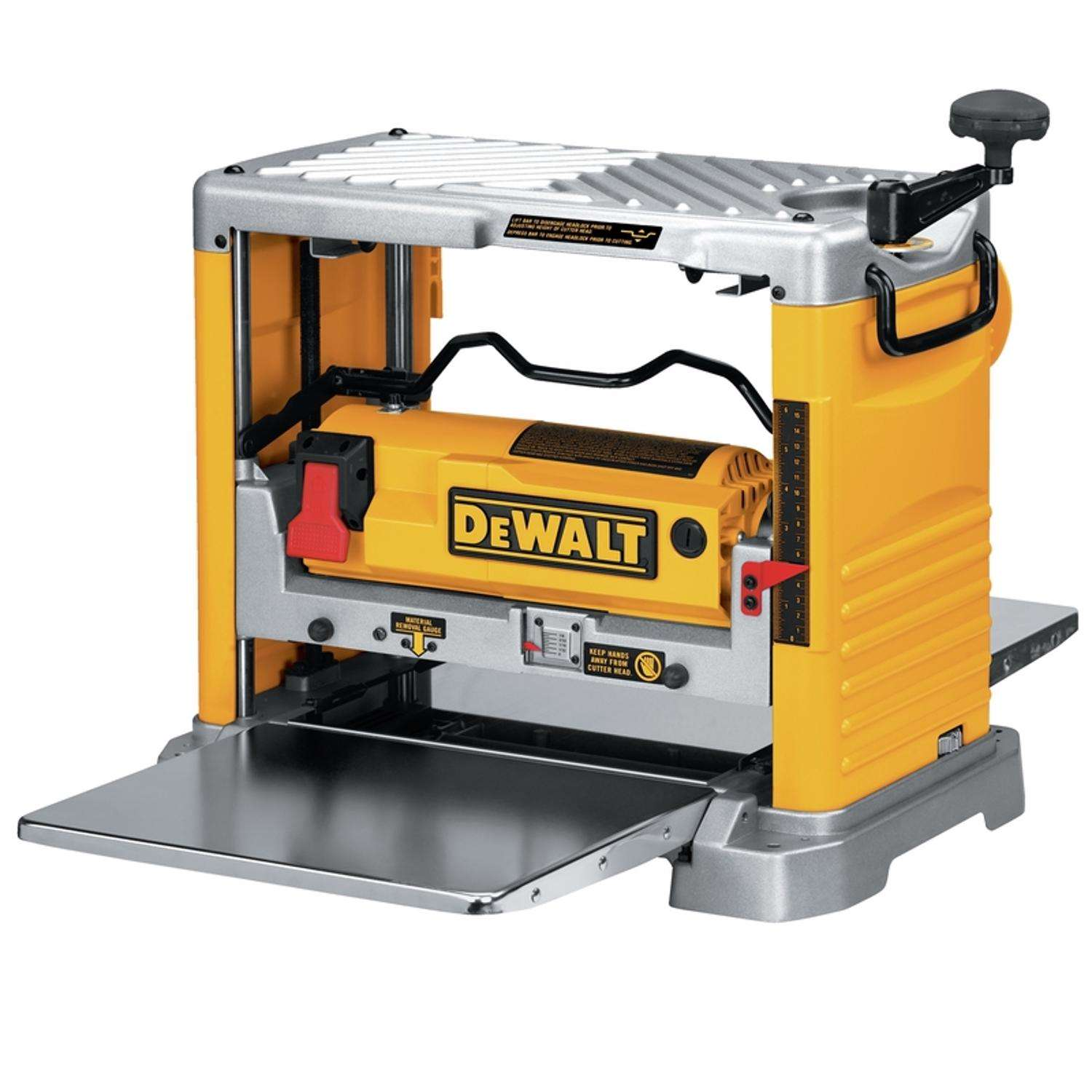

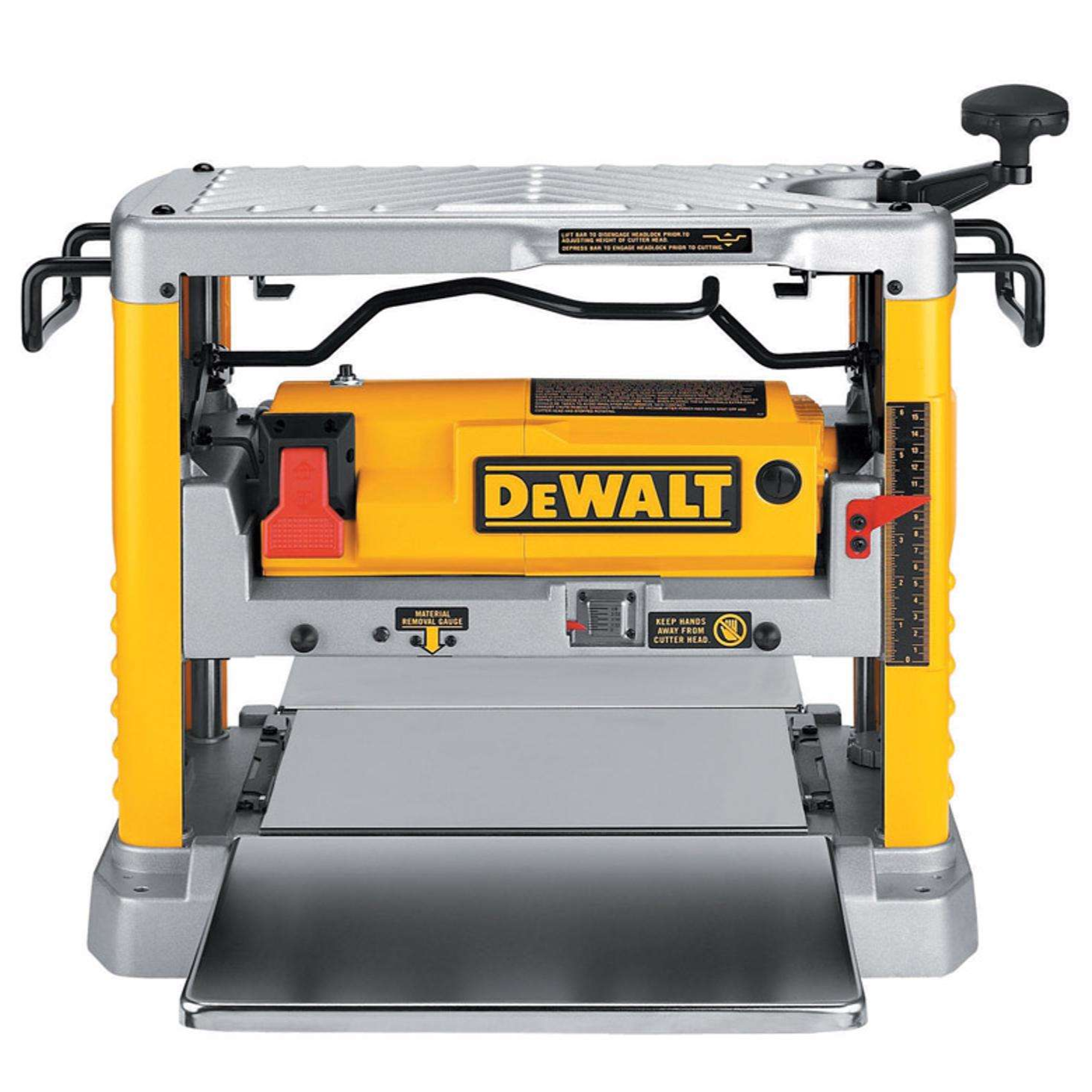

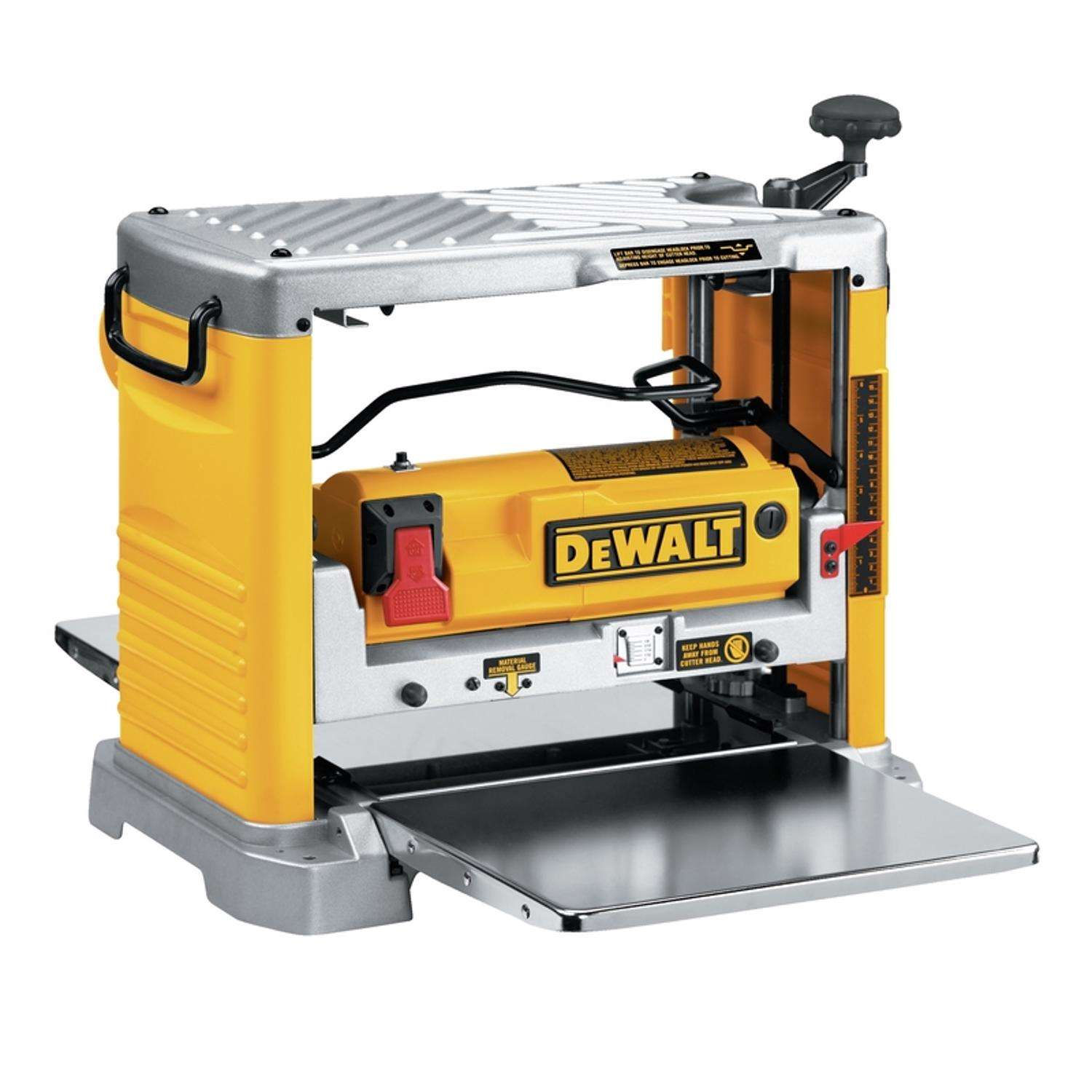

The DeWalt DW734 12-1/2 in. Thickness Planer is engineered for precision, durability, and smooth performance on a wide range of hardwoods and softwoods. Powered by a robust 15 Amp motor, it easily handles large, deep cuts — making it ideal for furniture makers, remodelers, and serious woodworkers. Its three-knife cutter head, spinning at 10,000 RPM, produces 96 cuts per inch, delivering an ultra-smooth finish that rivals industrial planers.
The planer features disposable, reversible knives that offer up to 30% longer life and are easy to replace. With extra-long infeed and outfeed tables offering 33-1/2 in. of material support, this benchtop tool reduces snipe and ensures better material stability. A turret depth stop allows users to quickly return to commonly used planing depths, and the four-column carriage lock helps to eliminate movement that causes snipe during operation.
A material removal gauge and oversized thickness scale make it easy to deliver precise, repeatable results on every pass.
Key Features
-
Powerful 15 Amp Motor: Handles large and deep cuts in hardwoods with ease
-
Three-Knife Cutter Head: Produces 10,000 RPM and 96 cuts per inch for a fine, smooth finish
-

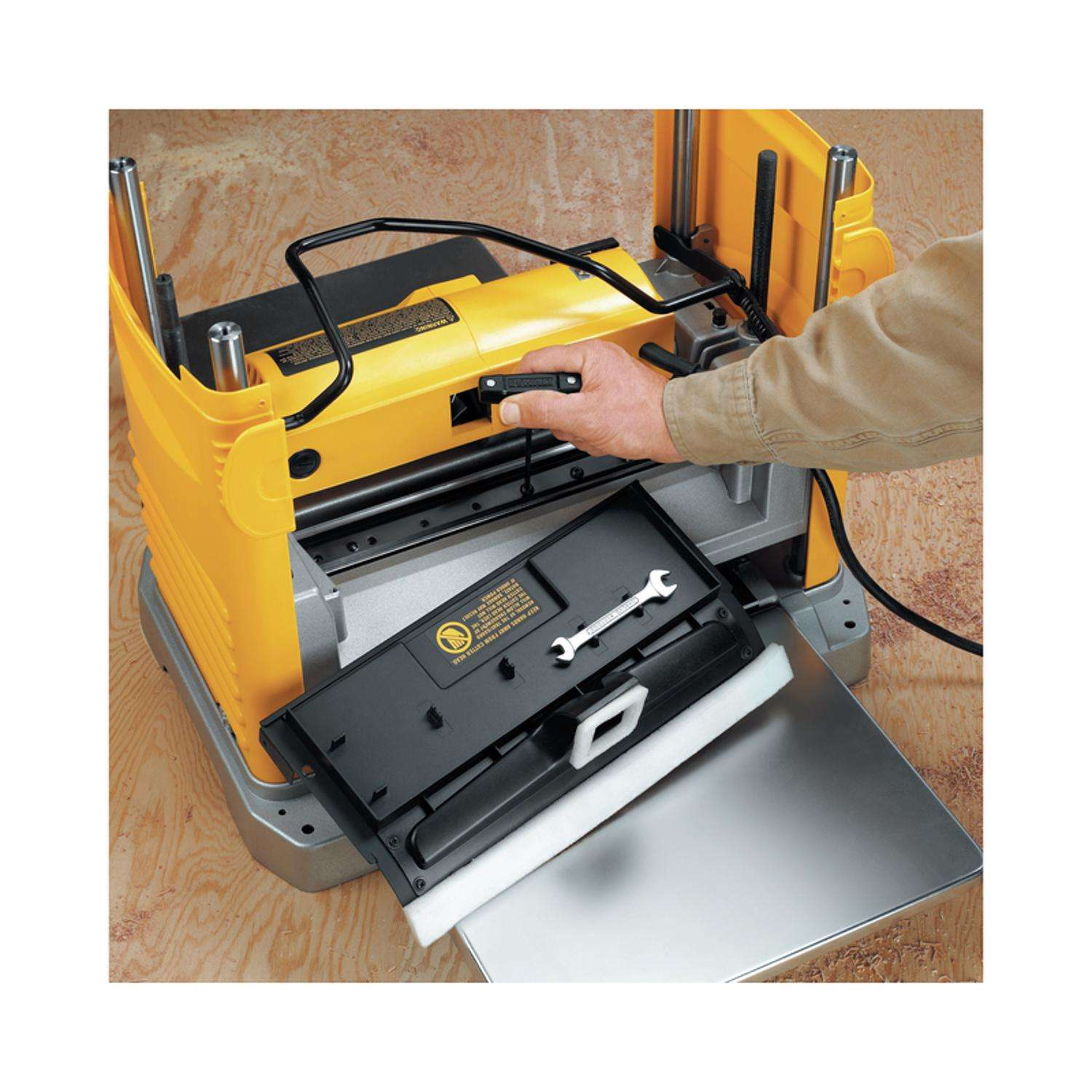

Disposable & Reversible Knives: Offers 30% more knife life and tool-free blade changes
-
Extended Material Support: Infeed and outfeed tables extend to 33-1/2 in. for better material handling
-
Turret Depth Stop: Easily return to frequently used planing depths
-
Four-Column Carriage Lock: Reduces movement during cutting to minimize snipe
-
Precision Gauging: Extra-large thickness scale and material removal gauge ensure accurate passes
-
Dust Hood Included: Supports dust collection when connected to a vacuum or collector (sold separately)
Specifications
| Feature |
Description |
| Brand |
DeWalt |
| Model Number |
DW734 |
| Tool Type |
Benchtop Thickness Planer |
| Motor Power |
15 Amps |
| Maximum Planing Width |
12-1/2 in. |
| Maximum Depth of Cut |
1/8 in. per pass |
| Cutter Head Speed |
10,000 RPM |
| Cuts Per Inch |
96 |
| Cuts Per Minute |
18,000 CPM (3-blade cutter head) |
| Number of Blades |
3 |
| Blade Type |
Disposable, Reversible |
| Depth Adjustment |
Yes |
| Dust Collection |
Dust hood included (dust extractor sold separately) |
| Corded/Cordless |
Corded |
| Brushless Motor |
No |
| Tool Weight |
80 lbs |
| Tool Dimensions (H x W) |
21 in. x 21 in. |
| Planer Type |
Benchtop |
| Case Included |
No |
| Kit or Tool Only |
Tool Only |
| Certifications |
CSA and UL Listed |
| Warranty |
3-Year Limited Warranty |
