Description

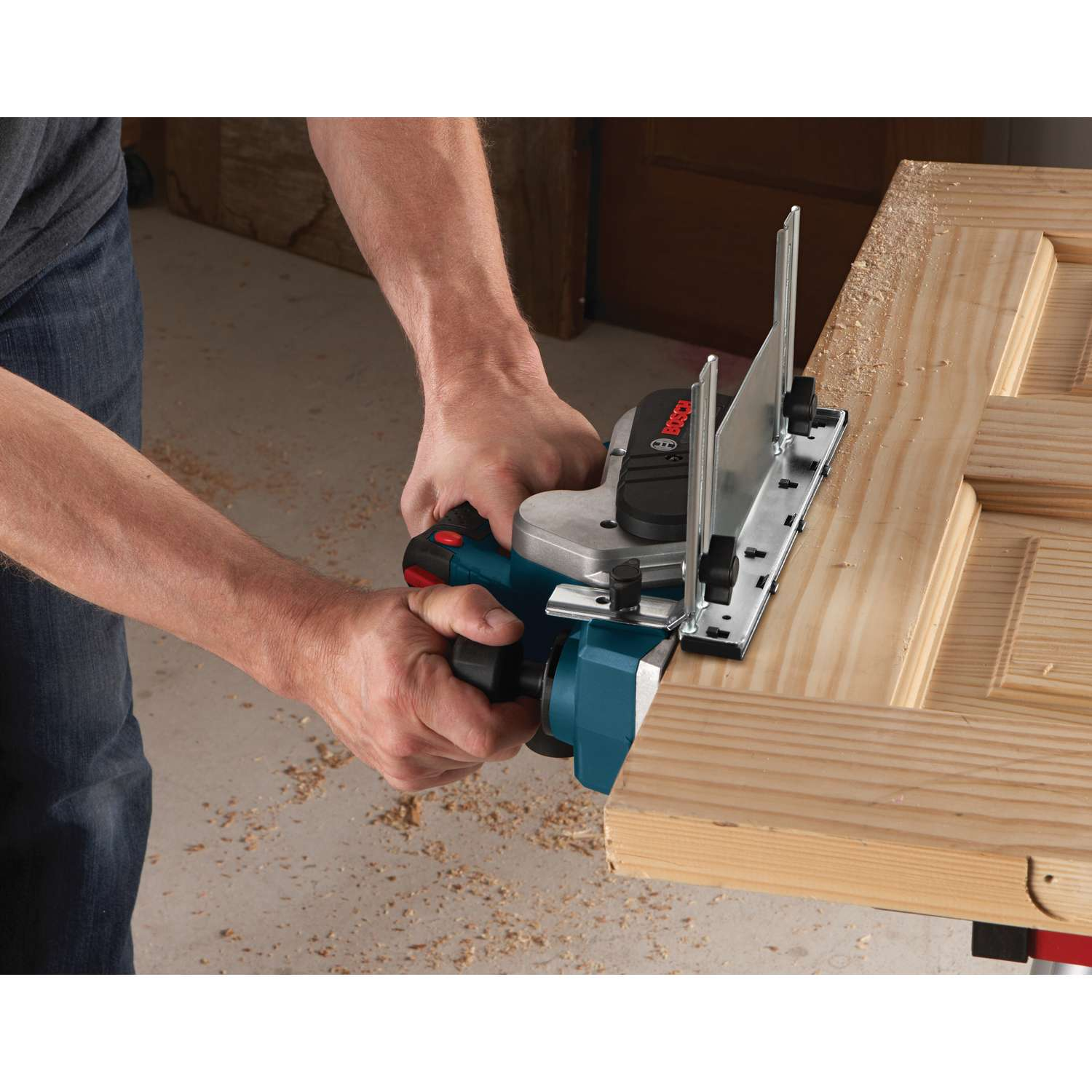

The Bosch PL1632 3-1/4 in. Corded Hand Planer is built for professional-grade performance and precision. Ideal for planing doors, wood panels, and other surfaces, it combines powerful motor output, ergonomic features, and engineering innovations to deliver consistent, smooth results with minimal user fatigue.
Equipped with a 6.5 Amp motor generating up to 16,500 RPM, this planer ensures fast stock removal and a high-quality finish. It features a reversible Bosch Woodrazor™ micrograin carbide blade that lasts up to 30% longer than standard carbide blades and is part of an electronically counterbalanced single-blade system that automatically sets the ideal cutting angle to reduce drag and increase efficiency.
The ratcheting depth adjustment knob allows for precise depth increments (up to 1/16 in.) without the need for recalibration. Additional features like a dual-mount guide fence, ambidextrous lock-off button, dust ejection control, and a spring-loaded stand make this planer a reliable, accurate, and convenient tool on any jobsite.
Key Features
-
Powerful 6.5 Amp Motor: Delivers 16,500 RPM for smooth and fast material removal
-
Precision Planing: Aluminum front and rear shoes are precision-machined together for parallel accuracy
-
Ratcheting Depth Control: Foolproof depth setting from 0 to 1/16 in. per revolution—no re-zeroing required
-
Woodrazor™ Blade System: Reversible micrograin carbide blade offers superior durability and cutting performance
-
Ejection Control: Choose left or right chip ejection to manage dust direction based on workspace setup
-
Dual-Mount Fence with No-Mar Overshoe: Can be mounted on either side for consistent planing and work surface protection
-
Chamfer Groove: Machined into the front shoe for quick and accurate edge chamfering
-
Spring-Loaded Stand: Elevates the tool to protect the blade and surface when not in use
-
Ergonomic Design: Lock-on/lock-off button allows extended operation while preventing accidental starts
-
Ball-Joint Cord Swivel: Increases maneuverability and reduces cord wear
Specifications
| Feature |
Description |
| Brand |
Bosch |
| Model Number |
PL1632 |
| Tool Type |
Corded Hand Planer |
| Motor Power |
6.5 Amps |
| Planing Width |
3-1/4 in. |
| Maximum Depth of Cut |
1/8 in. (single pass) |
| Speed |
16,500 RPM |
| Cuts Per Minute |
33,000 CPM |
| Number of Blades |
1 (Reversible) |
| Blade Type |
Bosch Woodrazor™ Micrograin Carbide |
| Depth Adjustment |
Ratcheting knob (0 – 1/16 in.) |
| Dust Collection |
Yes (dual-sided ejection with bag adapter) |
| Corded/Cordless |
Corded |
| Cord Length |
10 ft |
| Tool Weight |
6.3 lbs |
| Tool Dimensions |
11.12 in. (L) x 6 in. (W) x 6.5 in. (H) |
| Brushless Motor |
No |
| Certifications |
UL Listed |
| Kit or Tool Only |
Tool Only |
| Warranty |
1-Year Limited Warranty |
What's Included
-
(1) Bosch PL1632 3-1/4 in. Planer
-
(1) Reversible Woodrazor™ Blade (PA1202)
-
(1) Dual-Mount Guide Fence
-
(1) No-Mar Plastic Overshoe for Fence
-
(1) Shavings Bag
-
(1) Blade Wrench
