Description
Product Overview
The Ashley Hearth AW1120E-P is a high-efficiency, EPA-certified wood-burning stove designed to deliver powerful heating performance while enhancing the ambiance of any living space. With a 68,000 BTU output, this stove efficiently heats areas up to 1,200 square feet, making it ideal for medium to large rooms.

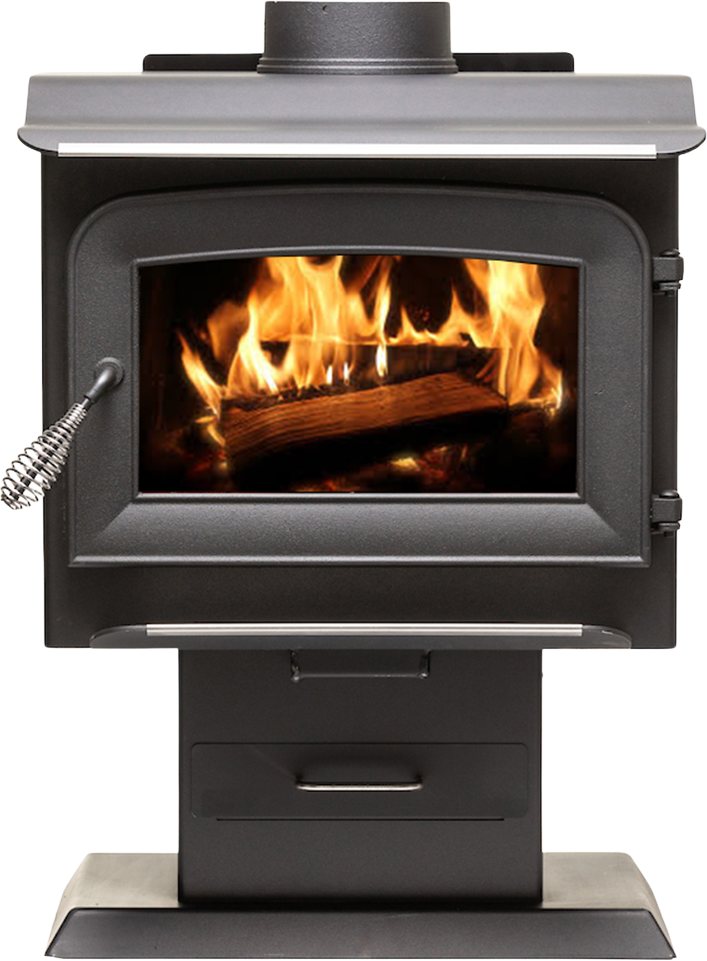

Crafted with durable plate steel and finished in a sleek charcoal black with nickel-pewter trim, this stove offers both durability and aesthetic appeal. The heavy cast iron door features an air-washed ceramic glass window, providing a stunning view of the flames while preventing soot buildup. The firebrick-lined firebox ensures long-lasting combustion efficiency, while the elegant pedestal base adds a refined touch to any home décor.
Key Features
✔ Heating Capacity: 68,000 BTUs – efficiently heats up to 1,200 sq. ft.
✔ Log Capacity: Accommodates logs up to 18 inches in length
✔ EPA Certified: Meets 2020 EPA emissions standards for clean, efficient burning
✔ Mobile Home Approved: Safe for use in mobile homes (USA only)

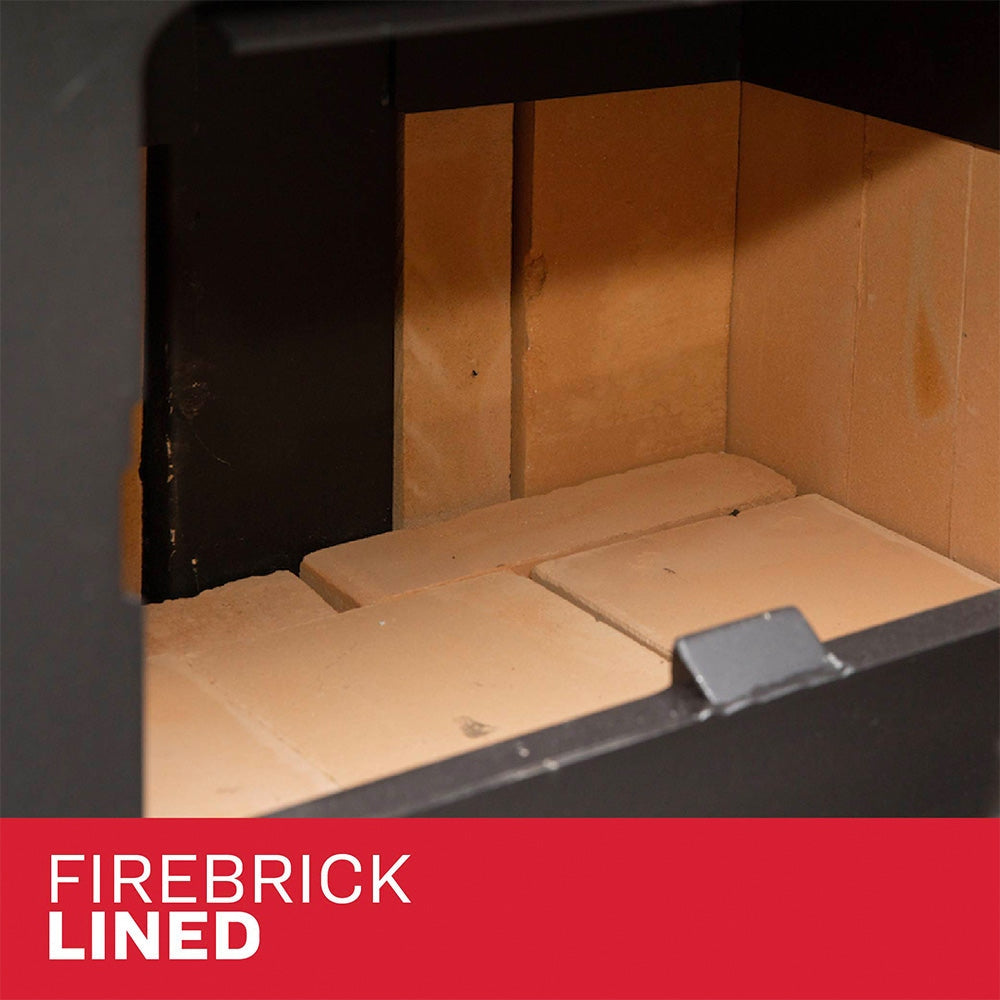

✔ Firebrick-Lined Firebox: Enhances combustion efficiency and durability
✔ Integrated Ash Pan: Features a brushed nickel handle for easy cleanup
✔ Air Wash System: Keeps the ceramic glass clean for an unobstructed fire view
✔ Blower Compatibility: Optional blower (sold separately – Model CB36 or B36)
✔ Pedestal Base: Adds stability and a refined look
✔ Nickel Spring Door Handle: Ensures secure closure and easy operation
How It Works
-

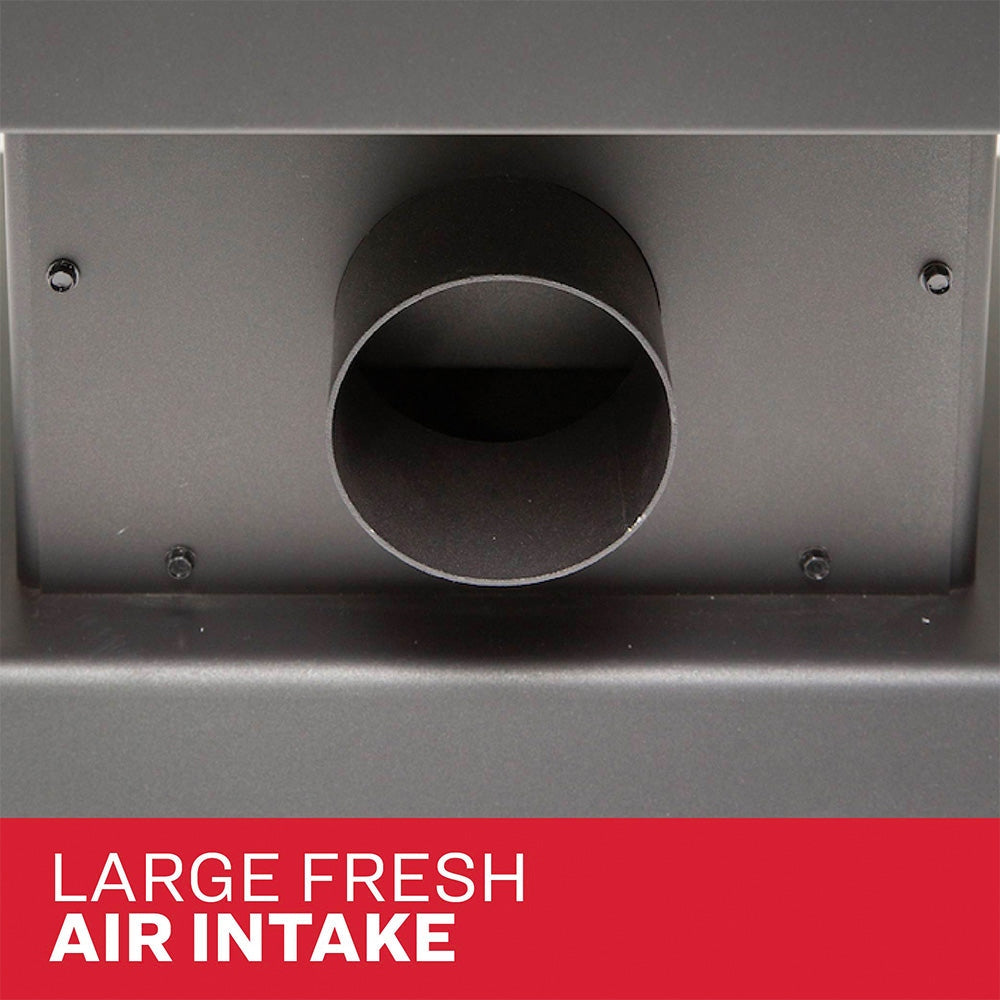

Primary Air Inlet: Located at the front for easy ignition.
-
Secondary Air Inlet: Positioned at the rear, feeding air through three ignition tubes for efficient, clean burning.
-
Non-Catalytic Combustion: Reliable performance without the need for a catalytic converter.
Specifications
General Details
| Attribute |
Specification |
| Stove Type |
Freestanding |
| Material |
Plate steel with cast iron door |
| Color/Finish |
Metallic black with nickel-pewter trim |
| EPA Certified |
Yes (2020 compliant) |
| Mobile Home Approved |
Yes (USA only) |
| UL Listed |
Yes |
| CSA Certified |
No |
| ETL Listed |
No |
Heating & Performance
| Attribute |
Specification |
| Maximum BTU Output |
68,000 BTUs |
| Heating Area |
Up to 1,200 sq. ft. |
| Efficiency Rating |
68.6% |
| Burn Type |
Wood (cordwood) |
| Catalytic/Non-Catalytic |
Non-Catalytic |
| Venting Required |
Yes (6" diameter, top vent) |
Firebox & Log Capacity
| Attribute |
Specification |
| Firebox Lining |
Firebrick |
| Firebox Width |
18.29 inches |
| Firebox Depth |
11.00 inches |
| Firebox Height |
11.68 inches |
| Max Log Length |
18 inches |
Dimensions & Weight
| Attribute |
Specification |
| Product Width |
22.5 inches |
| Product Depth |
21.5 inches |
| Product Height |
29.8 inches |
| Assembled Weight |
246 lbs |
| Shipping Dimensions |
30" (W) x 34" (H) x 24.5" (D) |
Additional Features
| Attribute |
Specification |
| Ash Drawer |
Yes (with nickel handle) |
| Blower Included |
No (sold separately) |
| Outside Air Kit |
No |
| Cooktop |
No |
| Temperature Gauge |
No |
| Ignition System |
Manual |
What’s Included
Warranty Information
-
Limited Lifetime Warranty: Firebox
-
1-Year Warranty: All other parts
-
1-Year Warranty: Electrical components (if applicable)
Compatibility & Replacements
