Description
Product Overview

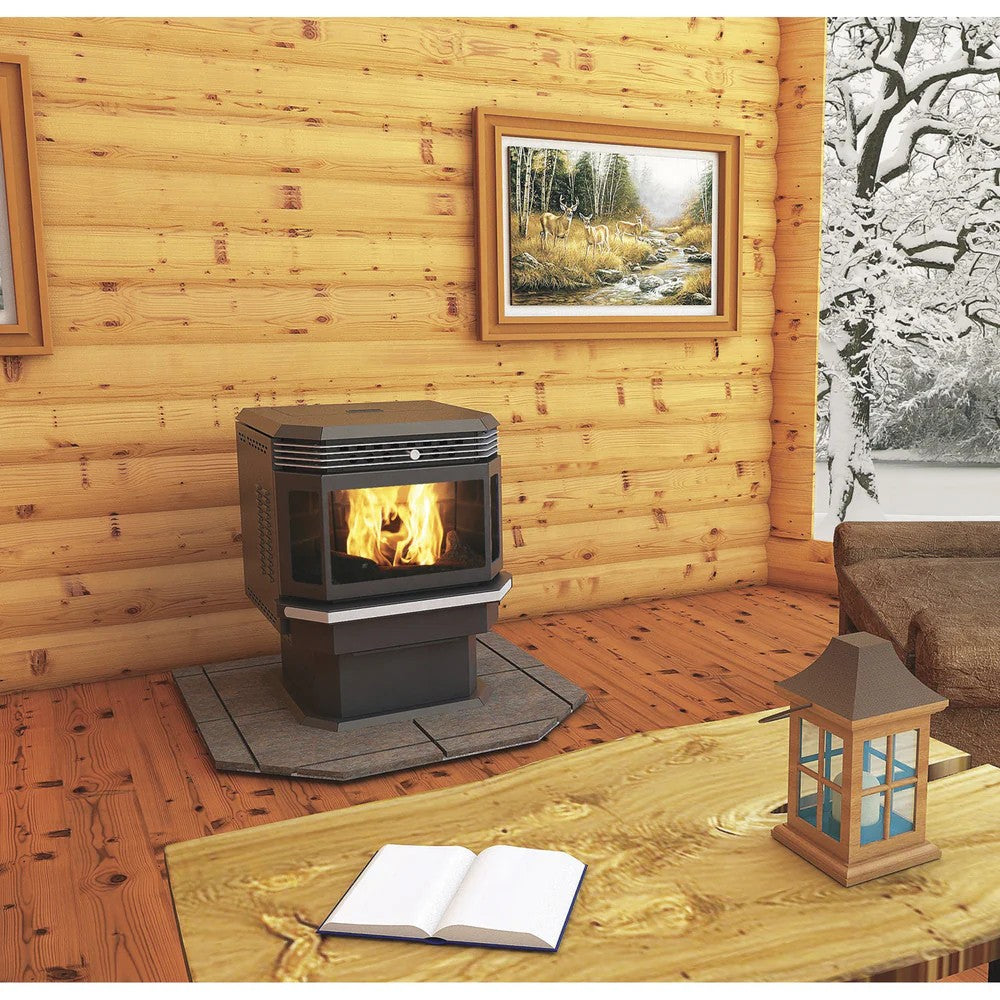

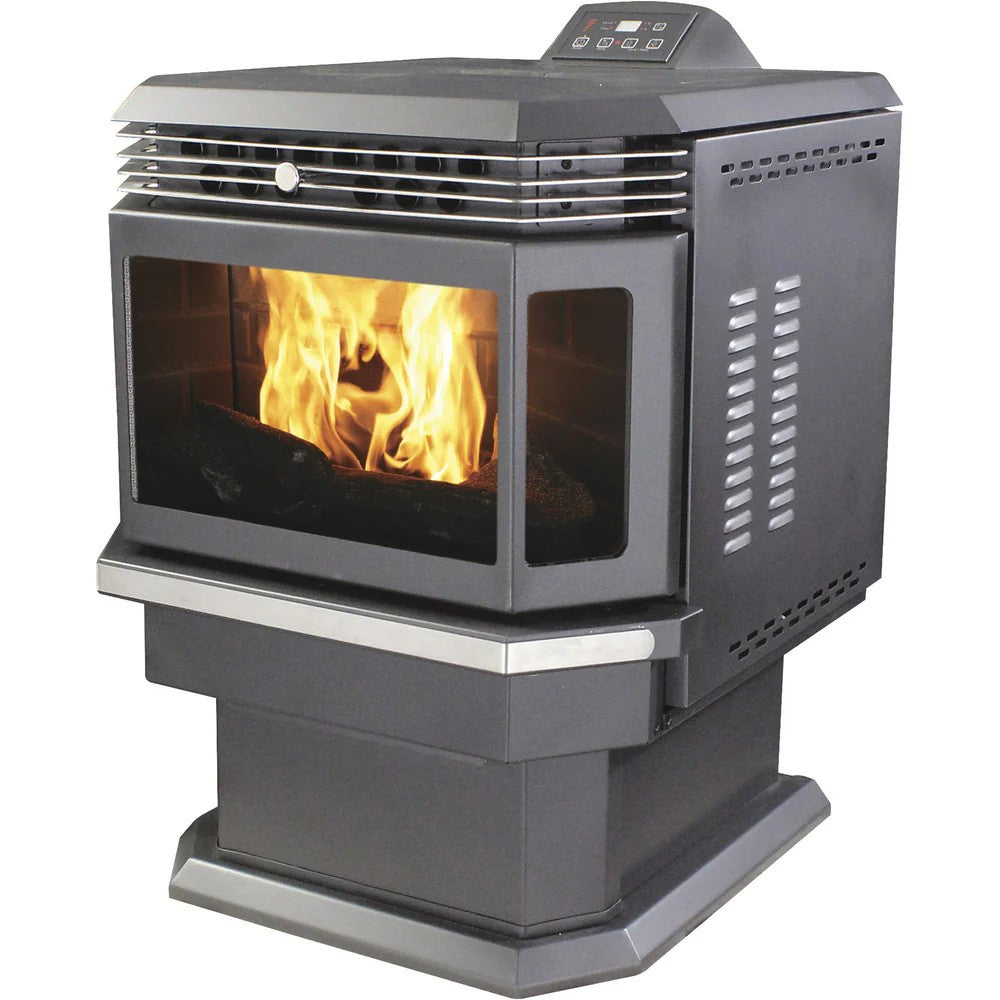

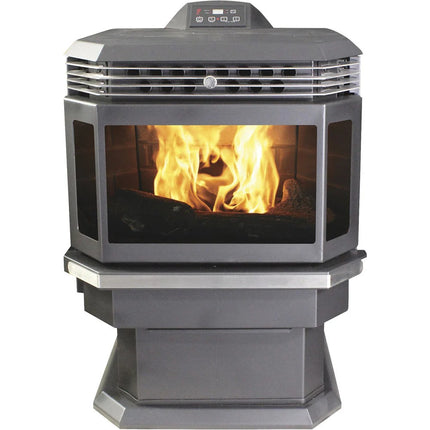

The Ashley Hearth AP5660 Bay Front Pellet Stove combines traditional fireplace aesthetics with the advanced efficiency of modern pellet heating. Featuring a large curved bay front glass window, realistic faux log set, and brick-style firebox backer, this unit delivers both visual charm and high-performance heating.
With a powerful 48,000 BTU output, it’s capable of comfortably heating spaces up to 2,200 sq. ft.. The fully automatic ignition, easy-to-use digital control panel, and 45 lb. hopper provide convenience, while the built-in circulation blower ensures even heat distribution throughout your home. Designed for reliable, low-maintenance operation, the AP5660 is a great fit for living rooms, cabins, workshops, or mobile homes (with optional fresh air kit).
Key Features
-
🔥 High Heating Capacity: Delivers up to 48,000 BTUs of clean, efficient heat to warm areas up to 2,200 sq. ft.
-
💨 Integrated 120 CFM Blower: Automatically circulates warm air throughout the room for consistent heating.
-
🔥 Large Bay Front Glass: Provides an unobstructed view of the flames, enhanced by the air wash system that keeps the glass clean.
-
🪵 Faux Log Set with Brick-Look Firebox Liner: Offers the aesthetic of a traditional wood-burning fireplace.
-
⚙️ Electronic Controls with LED Display: Easily adjust heat and airflow settings for personalized comfort.
-
🕒 Extended Burn Time: The 45 lb. pellet hopper allows up to 30 hours of burn time on the lowest heat setting.
-
🏠 Mobile & Modular Home Approved: Can be installed in mobile homes with optional fresh air kit (not included).
-
🔧 Automatic Ignition System: Hassle-free startup with no manual lighting required.
-
✅ Certified for Safety & Efficiency: EPA Approved, CSA Certified, ETL Listed, and UL Listed for peace of mind.
Specifications
| Category |
Details |
| Brand / Model |
Ashley Hearth AP5660 |
| Type |
Freestanding Pellet Stove |
| Color / Finish |
Black |
| Fuel Type |
Wood Pellets |
| Maximum Heat Output |
48,000 BTU/hr |
| Heating Capacity |
Up to 2,200 sq. ft. |
| Hopper Capacity |
45 lbs. |
| Burn Time |
Up to 30 hours (on lowest setting) |
| Ignition Type |
Automatic Electric |
| Controls |
Digital Touchpad with LED Display |
| Blower Airflow |
120 CFM (Built-In Variable Speed Blower) |
| Temperature Gauge |
Yes |
| Air Wash Glass System |
Yes |
| Firebox Style |
Faux log set with simulated brick lining |
| Catalytic / Non-Catalytic |
Non-Catalytic |
| Vent Type |

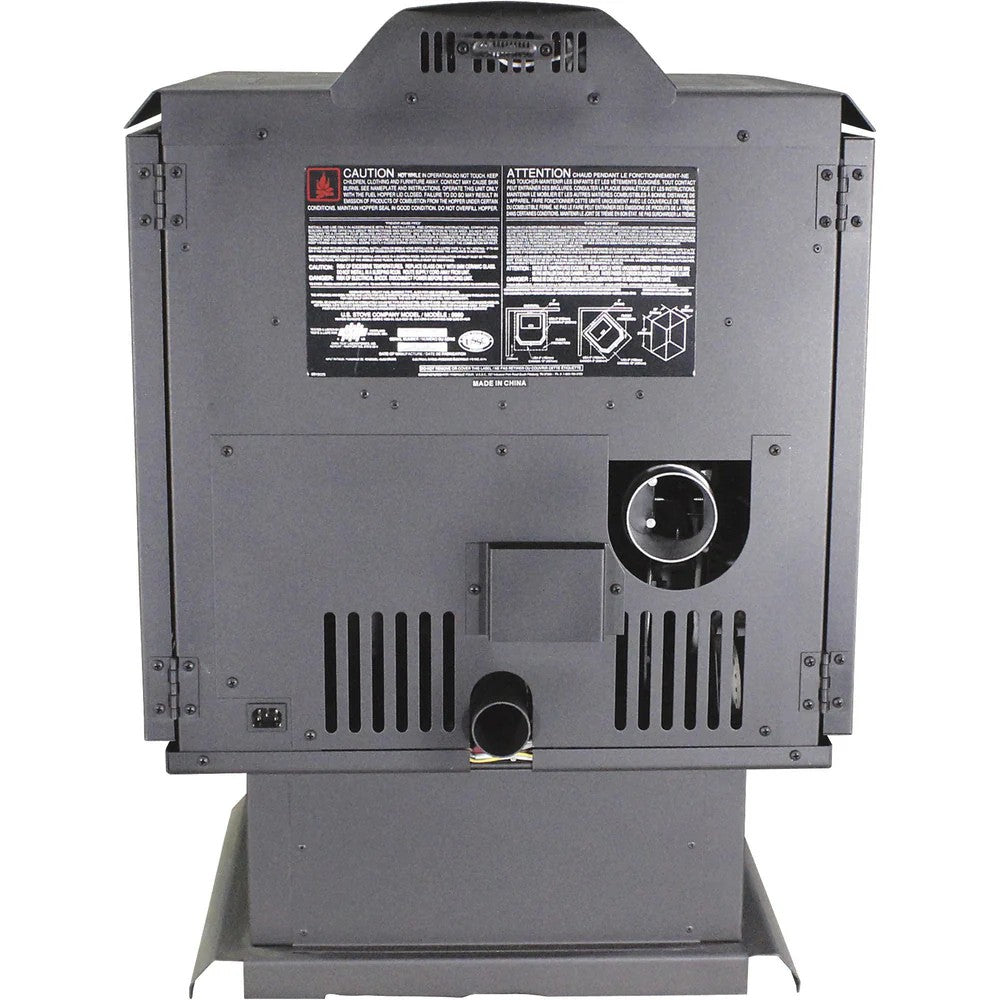

Rear-vented (3" vent diameter) |
| Outside Air Kit |
Not included (optional accessory) |
| Removable Ash Drawer |
Yes |
| Pedestal Base Included |
Yes |
| Assembly Required |
Yes |
Dimensions & Weight
| Measurement |
Dimensions |
| Assembled Width |
24.25 inches |
| Assembled Depth |
26.19 inches |
| Assembled Height |
30.5 inches |
| Shipping Dimensions |
29" W x 25.5" D x 39" H |
| Shipping Weight |
275 lbs |
Certifications
-
✅ EPA Approved
-
✅ CSA Certified
-
✅ ETL Listed
-
✅ UL Listed
Warranty Information
🛡️ Limited Lifetime Warranty on Firebox
🛡️ 1-Year Warranty on All Other Components
🛡️ 1-Year Electrical Components Warranty
