Description
Professional Landscaping Powerhouse

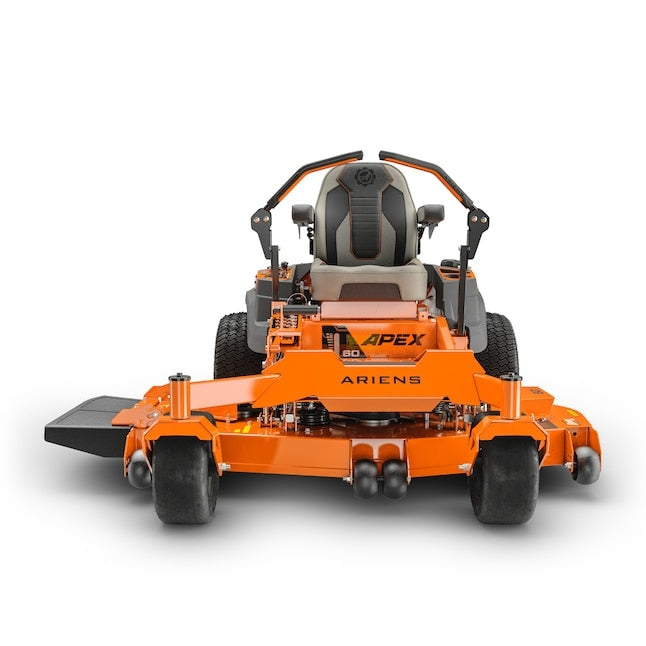

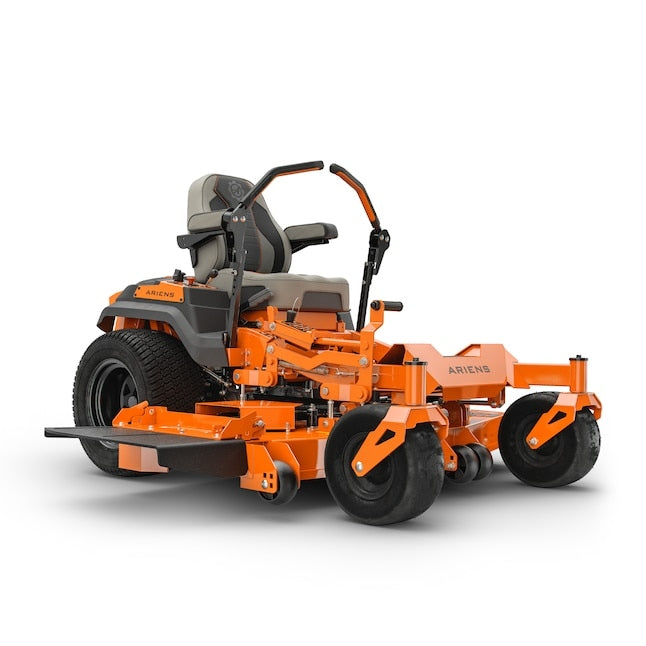

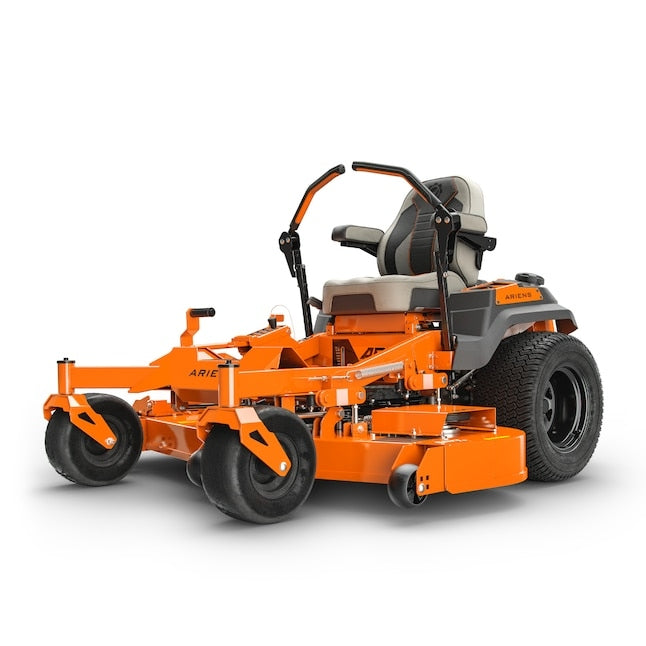

The Ariens APEX 60-inch Zero Turn Mower delivers true commercial performance, designed to cut mowing time in half while maintaining a professional-quality finish. Featuring a massive 60" cutting deck and 24 HP Kawasaki FR series engine, this machine combines industrial-strength construction with innovative features for superior productivity and durability.
Commercial-Grade Features
-
24 HP Kawasaki FR Series V-Twin Engine (726cc) with 5-gallon fuel capacity
-
60" 10-Gauge Welded Deck (5.5" depth) for maximum durability
-
Hydro-Gear ZT3100 Transaxles (8 mph forward / 4 mph reverse)
-
Commercial Welded Tubular Frame for ultimate stability
-
High-Back Seat with Armrests for all-day comfort
Technical Specifications
Power System
| Component |
Specification |
| Engine |
Kawasaki FR Series V-Twin |
| Horsepower |
24 HP |
| Displacement |
726cc |
| Fuel Capacity |
5 gallons (18.9L) |
| Starting System |
Electric |
Performance
| Feature |
Specification |
| Transmission |
Hydro-Gear ZT3100 Transaxles |
| Forward Speed |
0-8 mph |
| Reverse Speed |
0-4 mph |
| Tire Size (Front/Rear) |
13x6.5-6 / 22x11-10 |
Cutting System
| Feature |
Specification |
| Deck Width |
60 inches |
| Deck Material |
10-Gauge Welded Steel |
| Deck Depth |
5.5 inches |
| Blade Count |
3 |
| Spindles |
1" Steel with Ball Bearings |
| Cutting Height Range |
1.5"-5" (15 positions) |
| Height Adjustment |
Foot-Operated (¼" increments) |
| Blade Engagement |
Electric |
Dimensions & Build
| Feature |
Specification |
| Weight |
853 lbs |
| Length |
74.5 inches |
| Width |
62.8 inches (without chute) |
| Height |
42 inches |
| Frame |
Welded Tubular Steel |
Warranty Coverage
Professional Features
Enhanced Durability
✔ Constant Belt Tension System (CBT) reduces wear and extends belt life
✔ Aluminum Spindles run cooler and require no maintenance
✔ Reinforced Deck Leading Edge withstands tough conditions
Operator Convenience
✔ Flip-Up Discharge Chute protects surrounding landscape
✔ Removable Rear Wrap for easy engine access
✔ ROPS Compatible for added safety (optional)
Cutting Performance
✔ Wide 60" Cutting Path covers more ground efficiently
✔ 15-Position Height Adjustment for perfect cut quality
✔ Superior Deck Airflow ensures clean clipping dispersal
Why Choose the APEX 60-inch?
✅ True Commercial Performance – Built to withstand daily professional use
✅ Massive Cutting Capacity – 60" deck dramatically reduces mowing time
✅ Unmatched Durability – From the welded deck to the tubular frame
✅ Operator Comfort – High-back seat with armrests for long sessions
✅ Easy Maintenance – Accessible components and robust construction
Ideal Applications
✔ Commercial landscaping businesses
✔ Large estates and properties (5+ acres)
✔ Municipal and institutional grounds
✔ Golf courses and sports fields
✔ Demanding terrain with slopes
