Description
Professional-Grade Power for Demanding Landscapes

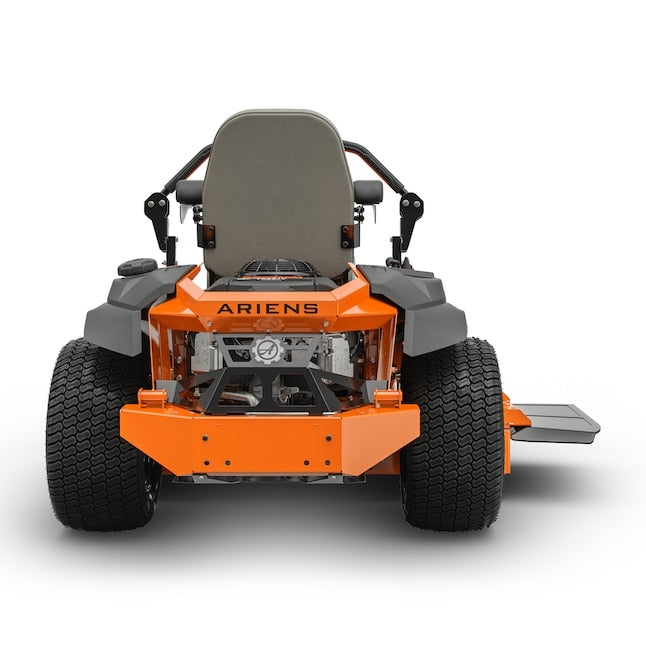

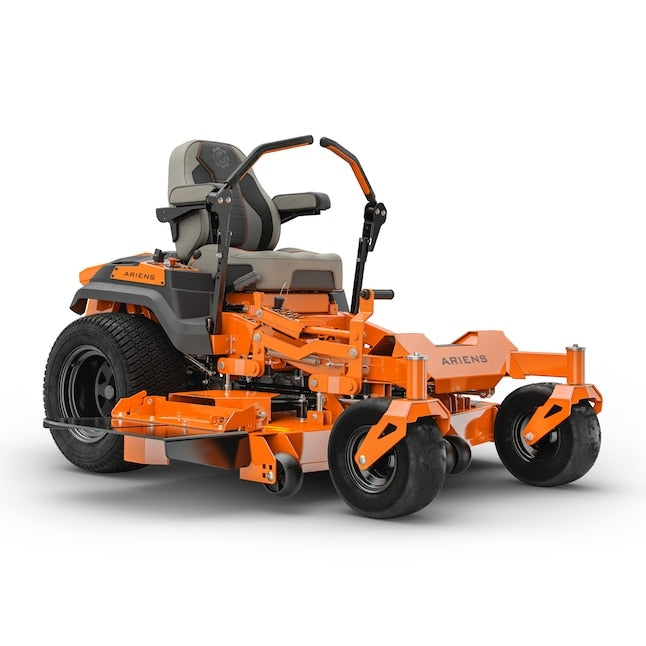

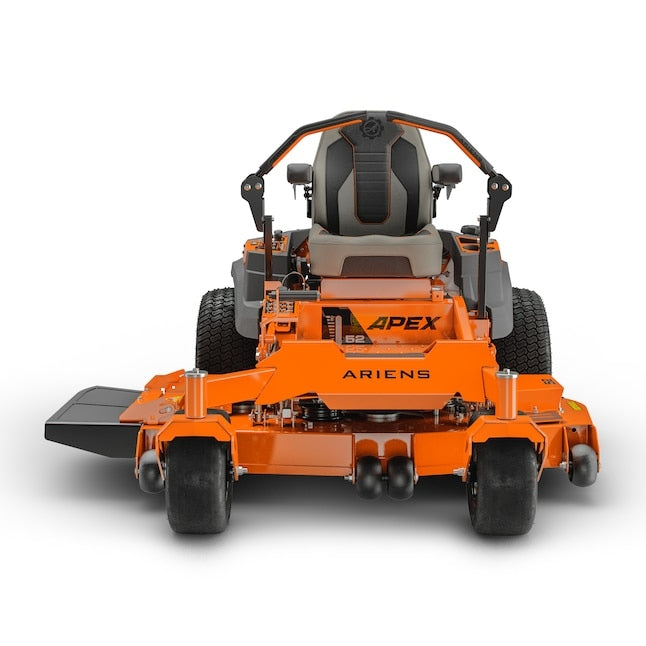

The Ariens APEX 52-inch Zero Turn Mower delivers uncompromising performance with its 23 HP Kawasaki FR V-Twin engine and heavy-duty 10-gauge fabricated deck. Designed for commercial landscapers and serious homeowners, this mower combines industrial-strength construction with innovative features for superior cutting performance and operator comfort.
Key Features & Benefits
Power & Performance
✔ 23 HP Kawasaki FR V-Twin Engine – Commercial-grade power with 5-gallon fuel capacity for extended runtime
✔ Hydro-Gear ZT3100 Transaxles – Industry-leading 8 mph forward / 4 mph reverse speeds for efficient mowing
✔ 10-Gauge Fabricated Welded Deck – 5.5" deep design with reinforced leading edge for superior airflow and durability
✔ Constant Belt Tension System (CBT) – Reduces wear and heat while extending belt life with minimal adjustments
Durability & Engineering
✔ Tubular Frame Rail Construction – Provides exceptional structural support and machine stability
✔ Aluminum Spindles – Maintenance-free design runs cooler for extended bearing life
✔ Flip-Up Discharge Chute – Protects surrounding landscape from damage
✔ Removable Rear Wrap – Quick access to engine for simplified maintenance
Operator Comfort & Control
✔ High-Back Seat with Padded Armrests – Reduces fatigue during extended use
✔ Foot-Operated Deck Lift – 15 cutting positions adjustable in 1/4" increments for precise height selection
✔ Large Tires (13x6.5-6 front / 22x10.5-12 rear) – Enhanced traction and smoother ride on uneven terrain
✔ ROPS Compatible – Optional Roll Over Protection System available for added safety
Technical Specifications
Engine Specifications
| Feature |
Specification |
| Engine Brand |
Kawasaki FR Series V-Twin |
| Horsepower |
23 HP |
| Fuel Capacity |
5 Gallons |
| Starting System |
Electric Starter |
Drive System
| Feature |
Specification |
| Transmission |
Hydro-Gear ZT3100 Transaxles |
| Max Forward Speed |
8 mph |
| Max Reverse Speed |
4 mph |
| Front Tires |
13x6.5-6 |
| Rear Tires |
22x10.5-12 |
Cutting Deck
| Feature |
Specification |
| Deck Width |
52 inches |
| Deck Material |
10-Gauge Fabricated Steel |
| Deck Depth |
5.5 inches |
| Blade Count |
3 |
| Spindles |
3 Aluminum |
| Cutting Height Range |
1.5" - 5" (15 positions) |
| Height Adjustment |
Foot-Operated Pin Selection |
| Blade Engagement |
Electric |
Comfort Features
| Feature |
Specification |
| Seat Type |
High-Back with Padded Armrests |
| Hour Meter |
Included |
| ROPS Compatibility |
Yes |
Dimensions & Warranty
| Feature |
Specification |
| Weight |
850 lbs |
| Length |
79 inches |
| Width |
67 inches |
| Height |
47 inches |
| Warranty |
4 Years or 500 Hours |
Why Choose the Ariens APEX 52-inch Zero Turn Mower?
✅ Commercial-Grade Construction – From the 10-gauge fabricated deck to the tubular frame, built to withstand daily professional use
✅ Unmatched Cutting Precision – 15-position height adjustment in 1/4" increments for perfect cut quality
✅ Superior Maneuverability – 8 mph top speed and zero-turn capability for efficient mowing
✅ Operator-Focused Design – Comfortable high-back seat and intuitive controls reduce fatigue
✅ Low-Maintenance Operation – Aluminum spindles and CBT system minimize downtime
Ideal For:
-
Commercial landscaping companies
-
Large estate properties
-
Municipal and institutional grounds
-
Golf course roughs and sports fields
-
Demanding residential properties (5+ acres)
