Description

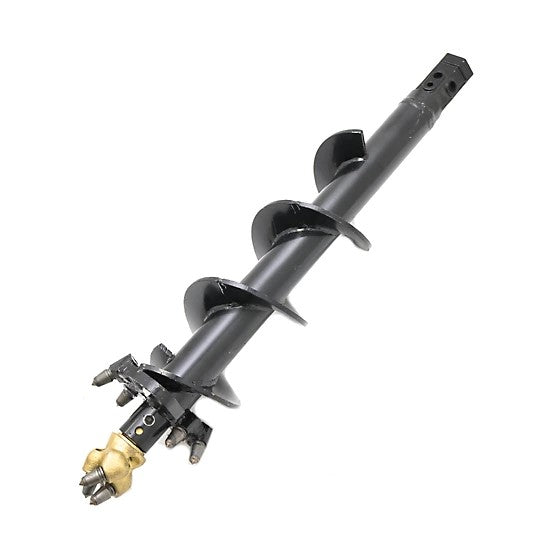

Tackle the toughest ground conditions with the AgKNX 9 in. Rock Auger, built for power, durability, and high-impact drilling. Specifically engineered for 2 in. hex drive output shafts, this heavy-duty auger is ideal for professional contractors, landowners, and operators working with skid steers and tractor-mounted post hole diggers (not compatible with round shaft diggers).
With reinforced construction, double flighting, and carbide bullet teeth, this auger is designed to chew through compacted soils, rock, clay, and other abrasive materials with industrial-grade performance.
Key Features
-
9-Inch Drilling Diameter
Perfect for installing posts, poles, anchors, and utility footings in rocky or dense soils.
-
2 in. Hex Drive Compatibility
Built for use with most 2-inch hex gearbox output shafts on skid steers and industrial post hole diggers. Not compatible with 2 in. round 3-point auger systems.
-

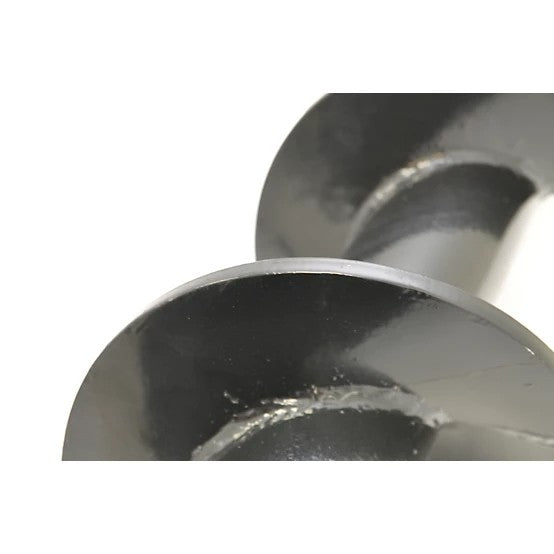

Extra-Heavy-Duty Construction
Made from high-strength steel with 10 mm thick double flighting and continuous double-fillet welding on both upper and lower surfaces for superior durability.
-

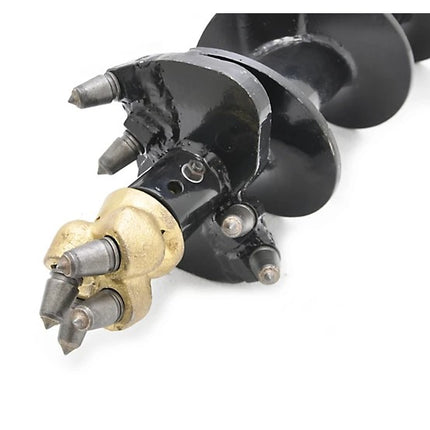

Carbide Bullet Tooth Design
Equipped with a bolt-on rock auger tip featuring 4 replaceable carbide bullet teeth (C21H style) on the tip and 4 additional replaceable C21H teeth on the flighting, offering exceptional cutting and wear resistance in rocky or compacted ground.
-
Deep Drilling Capability
48 in. overall length provides up to 4 ft. of drilling depth, ideal for deep post installations in challenging environments.
-
Standard Mounting Bolt Holes
Matches industry-standard hole spacing for secure mounting and easy integration with existing equipment.
-
Versatile Use
A top choice for skid steers and high-horsepower tractors, especially where high torque and rugged soil conditions are present.
-
1-Year Warranty
Backed by AgKNX’s 1-year limited warranty for confidence and reliability.
Specifications
| Attribute |
Details |
| Brand |
AgKNX |
| Model Number |
23-024 |
| Recommended Part Number |
23-024 |
| Drive Type |
2 in. Hex Output Shaft |
| Auger Diameter |
9 in. |
| Auger Length |
48 in. |
| Maximum Drilling Depth |
4 ft. |
| Auger Flighting |
Double flighting (10 mm thickness) |
| Cutting Teeth |
Replaceable carbide bullet teeth (C21H) |
| Tip Style |
Bolt-on rock auger tip with carbide teeth |
| Welding Style |
Double-fillet welded (top and bottom) |
| Material |
High-strength steel |
| Finish |
Industrial-grade corrosion-resistant coating |
| Product Weight |
94 lb. |
| Product Dimensions (L x W x H) |
48 in. x 9 in. x 9 in. |
| Compatibility |
Skid Steer Diggers, Tractor-Mounted Diggers |
| Max Tractor Horsepower |
150 hp |
| Min Tractor Horsepower |
50 hp |
| Features |
Replaceable Cutting Teeth, Welded Flighting |
| Country of Origin |
Imported |
| Warranty |
1-Year Limited Warranty |
