Description

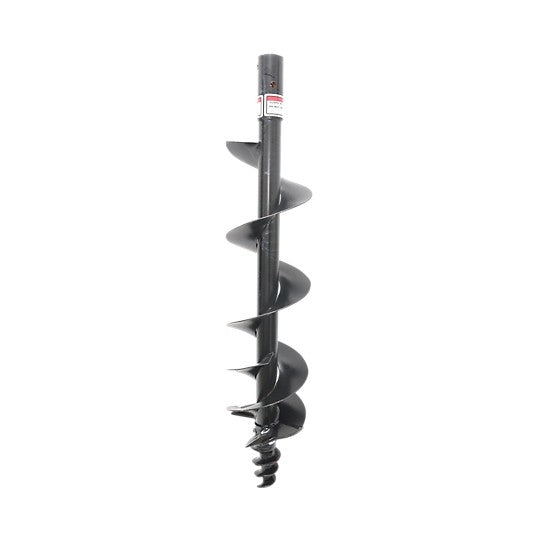

The AgKNX 9 in. Heavy-Duty Earth Auger is engineered for reliable, high-performance digging in demanding conditions. Designed to fit tractor-mounted post hole diggers and skid steers with a 2 in. round output shaft, this auger is ideal for fence post installation, landscaping, and light construction applications.
Featuring a 9 in. diameter and 48 in. length, this auger is built from high-strength steel and includes thick double flighting, a bolt-on spiral center tip, and two replaceable heavy-duty cutting teeth made from high carbon steel. The reinforced input shaft collar is drilled to accept two 1/2 in. bolts positioned 90° apart, ensuring a secure fit on standard 2 in. round drives.
Key Features
-
9 in. Diameter, 48 in. Length
Ideal for medium-sized post holes, planting holes, and footings.
-
Heavy-Duty Steel Construction
Built from high-quality steel for durability and impact resistance in tough soils.
-
Double Flighting
Provides smoother drilling, increased digging speed, and better soil removal efficiency.
-

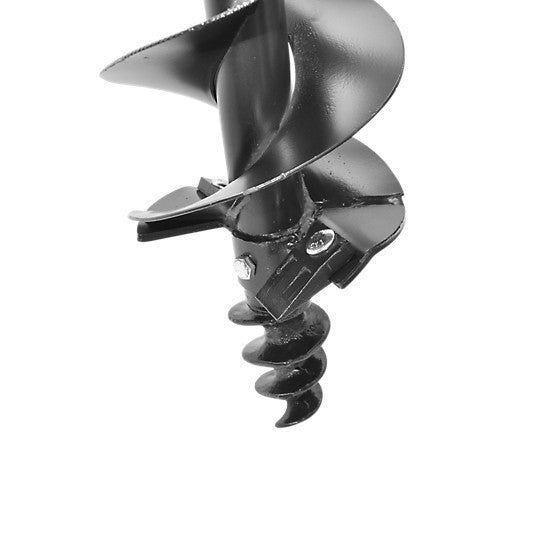

Bolt-On Spiral Center Tip
Offers aggressive penetration into soil and improved centering during operation.
-
Replaceable High Carbon Cutting Teeth
Two bolt-on cutting edges are easy to replace and deliver long-lasting performance in compacted or rocky ground.
-

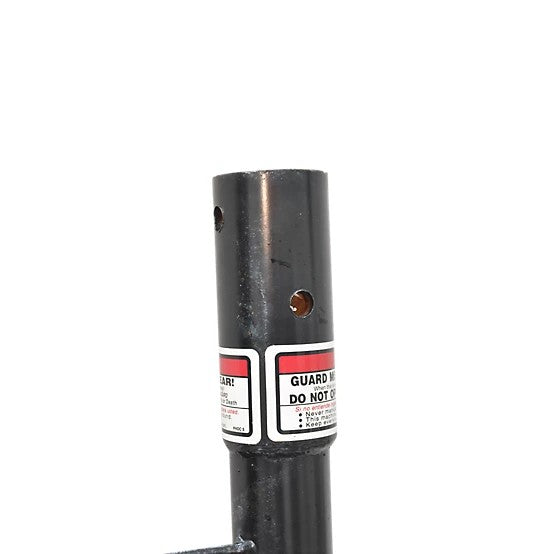

Reinforced Input Collar
Designed for use with 2 in. round shafts, secured with two 1/2 in. bolts set at 90° apart.
-
4 ft. Drilling Depth Capability
Suitable for a wide range of fencing and structural post applications.
-
Compatible with Most Post Hole Diggers
Designed to fit post hole diggers and skid steer auger drive units using a 2 in. round output shaft.
Specifications
| Specification |
Details |
| Brand |
AgKNX |
| Model Number |
23-041 |
| Auger Diameter |
9 in. |
| Auger Length |
48 in. (4 ft.) |
| Drive Type |
2 in. Round Shaft |
| Flighting Type |
Double-Flighted Steel |
| Cutting Tip |
Bolt-On Spiral Center Tip |
| Cutting Teeth |
2 Replaceable High Carbon Steel Edges |
| Input Collar Design |
Reinforced with 2 Bolt Holes (1/2 in.) |
| Primary Material |
Steel |
| Maximum Drilling Depth |
48 in. |
| Auger Speed |
Dependent on Powerhead (0–540 RPM typical) |
| Weight |
46 lbs |
| Country of Origin |
Imported |
| Compatibility |
2 in. Round Shaft Post Hole Diggers, Skid Steer Augers |
| Recommended Use |
Fencing, Landscaping, Light Construction |
| Recommended Auger Part Number |
23-041 |
| Warranty |
1-Year Manufacturer Warranty |
