Description
The AgKNX 6 in. Rock Auger with 2 in. Hex Drive is built for tough digging tasks in rocky or compacted soils. Ideal for tractor-mounted post hole diggers and skid steers with 2-inch hex output shafts, this auger delivers reliable, high-performance drilling for fencing, utility, and construction applications.
Featuring a rugged double-flighting design and reinforced collar, this auger offers superior strength and durability. It’s part of the AgKNX Earth Auger Series, engineered specifically for industrial-duty use in demanding environments.
Key Features
-
6-Inch Diameter for Precision Drilling
Ideal for applications requiring narrow, deep holes such as fence posts, footings, and anchoring systems.
-
Compatible with 2 in. Hex Gearbox Output Shafts
Securely mounts to most industry-standard 2 in. hex drive gearboxes—not compatible with 2 in. round shafts.
-
Heavy-Duty Double Flighting
10 mm thick steel double flighting improves soil removal and provides efficient cutting with less resistance. Welded on both top and bottom surfaces for structural integrity.
-

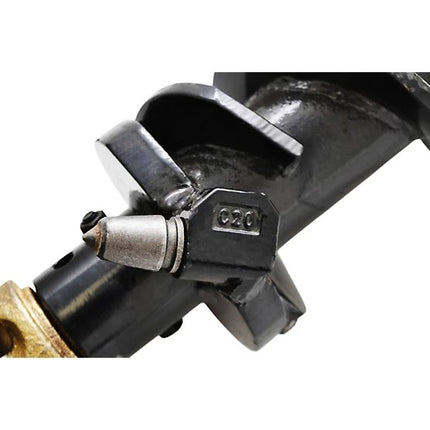

Durable Replaceable Cutting Edges
Equipped with two industry-standard pound-in cutting edges (C21H-style bullet teeth), replaceable and interchangeable for easy maintenance.
-
Reinforced Input Shaft Collar
Strengthened for secure mounting and long-lasting operation in high-torque conditions.
-
48-Inch Length with 4-Foot Digging Capacity
Capable of drilling holes up to 4 ft. deep, meeting common requirements for fencing and landscaping.
Specifications
| Attribute |
Details |
| Brand |
AgKNX |
| Model Number |
23-023 |
| Drive Type |
2 in. Hex Shaft |
| Auger Diameter |
6 in. |
| Auger Length |
48 in. |
| Digging Depth |
Up to 4 ft. |
| Flighting Thickness |
10 mm |
| Flighting Type |
Double, Continuously Welded (Top & Bottom) |
| Tip Type |
Bolt-On with Replaceable Cutting Edges |
| Cutting Teeth |
2 Replaceable C21H-Style Bullet Teeth |
| Primary Material |
High-Strength Steel |
| Construction Features |
Reinforced Collar, Heavy-Duty Welding |
| Compatibility |
Tractor Post Hole Diggers, Skid Steers (2" Hex) |
| Auger Speed Range |
0 RPM |
| Maximum Tractor Horsepower |
200 hp |
| Minimum Tractor Horsepower |
50 hp |
| Product Dimensions (L x W x H) |
48 in. x 6 in. x 6 in. |
| Product Weight |
74 lb. |
| Country of Origin |
Imported |
| Warranty |
1-Year Limited Warranty |
| Recommended Auger Part Number |
23-023 |
| Manufacturer Part Number |
23-023 |
