Description

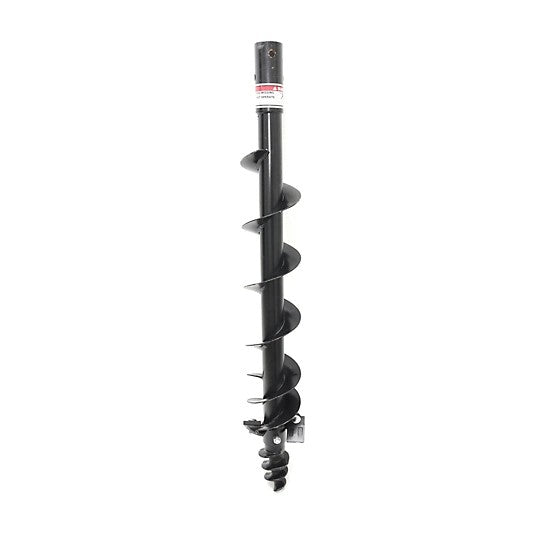

The AgKNX 6 in. Heavy-Duty Earth Auger is engineered to deliver exceptional performance in rugged soil conditions. Designed for compatibility with tractor-mounted post hole diggers and skid steer auger systems using a 2 in. round output shaft, this auger is perfect for fencing, landscaping, and construction applications.
Built from heavy-duty welded steel, the auger features double flighting for increased material removal, a reinforced input shaft collar, and bolt-on spiral tip with replaceable high-carbon cutting teeth. Its rugged construction and 4 ft. digging depth make it ideal for demanding environments and high-horsepower equipment.
Key Features
-
6 in. Diameter, 48 in. Length
Perfect for digging narrow, deep holes for posts, piers, or poles.
-
Double Flighting for Enhanced Performance
10 mm thick flighting welded top and bottom for increased material throughput and durability.
-

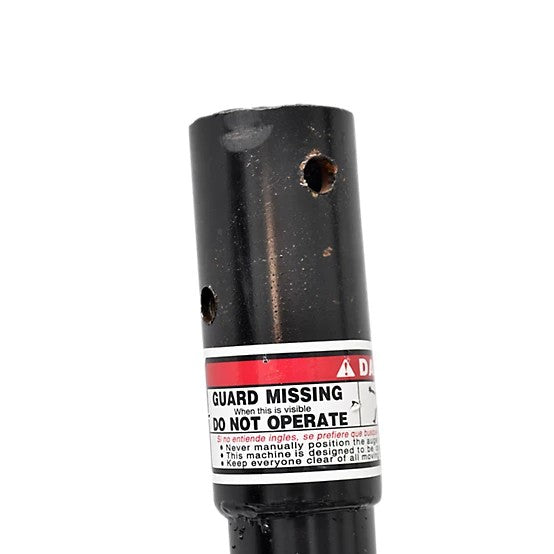

Reinforced 2 in. Round Collar
Securely attaches with two ½ in. bolts (positioned 90° apart) to fit most standard round-output gearboxes.
-

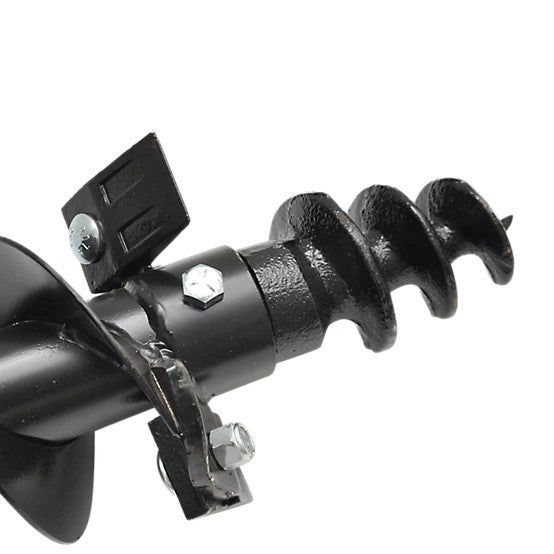

Bolt-On Spiral Center Tip
Delivers stable starting and efficient soil penetration.
-
Replaceable High-Carbon Steel Cutting Edges
Two heavy-duty blades mounted on the lower flighting for easy maintenance and consistent performance.
-
Heavy-Duty Construction
Engineered to withstand use with tractors up to 200 HP in tough digging conditions.
Specifications
| Specification |
Details |
| Brand |
AgKNX |
| Model Number |
23-040 |
| Auger Diameter |
6 in. |
| Auger Length |
48 in. (4 ft.) |
| Drive Type |
2 in. Round Shaft |
| Flighting Type |
Double Flighting |
| Flighting Thickness |
10 mm |
| Center Tip |
Bolt-On Spiral Tip |
| Cutting Teeth |
2 Replaceable High-Carbon Steel Teeth |
| Reinforced Collar |
2 Bolt (½ in. dia. at 90°) |
| Primary Material |
Welded Steel |
| Finish |
Powder-Coated for Corrosion Resistance |
| Maximum Drilling Depth |
48 in. |
| Auger Speed |
Dependent on powerhead (0–540 RPM typical) |
| Product Weight |
36 lb. |
| Product Dimensions (L x W x H) |
48 in. x 6 in. x 6 in. |
| Compatibility |
2 in. Round Drive Tractors, Skid Steers |
| Recommended Horsepower Range |
50–200 HP |
| Recommended Auger Part Number |
23-040 |
| Country of Origin |
Imported |
| Warranty |
1-Year Manufacturer Warranty |
