Description

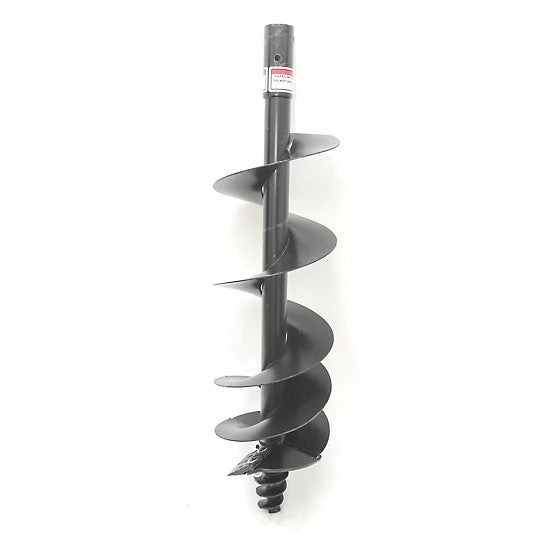

The AgKNX 12 in. Heavy-Duty Auger with 2 in. Round Drive is built for demanding digging tasks using tractor-mounted post hole diggers or compatible skid steers. Engineered for strength and reliability, this auger makes quick work of fence post installation, tree planting, and utility hole drilling in a variety of soil conditions.
This auger is constructed with industrial-grade steel, thick double flighting, and a reinforced input collar. It connects securely to 2 in. round gearbox output shafts using dual 1/2 in. bolts at 90° spacing—ensuring a strong and stable attachment in rugged use conditions.
Key Features
-
12-Inch Drilling Diameter
Perfect for creating larger post holes for fences, gates, deck footings, trees, and more.
-
2 in. Round Output Shaft Compatibility
Designed to fit post hole diggers and auger drives with a 2-inch round output shaft using two 1/2 in. mounting bolts positioned 90° apart.
-
48-Inch Length / 4 ft. Drilling Depth
Provides a maximum drilling depth of 4 ft. without needing extension shafts—ideal for deep holes in various soil conditions.
-
Durable Double Flighting
Heavy-duty double flighting offers increased soil displacement and stability, and is continuously welded for enhanced strength.
-

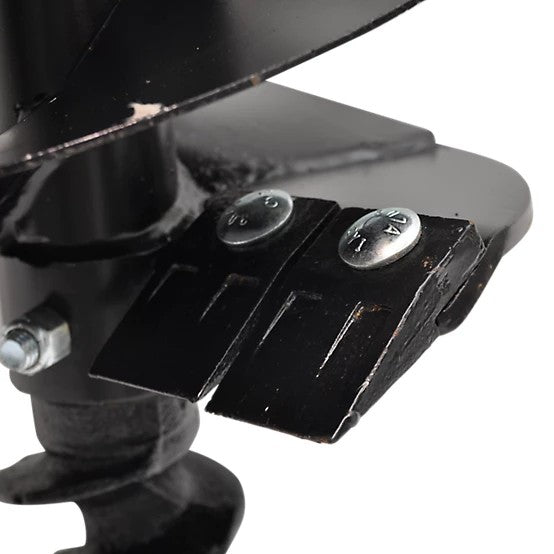

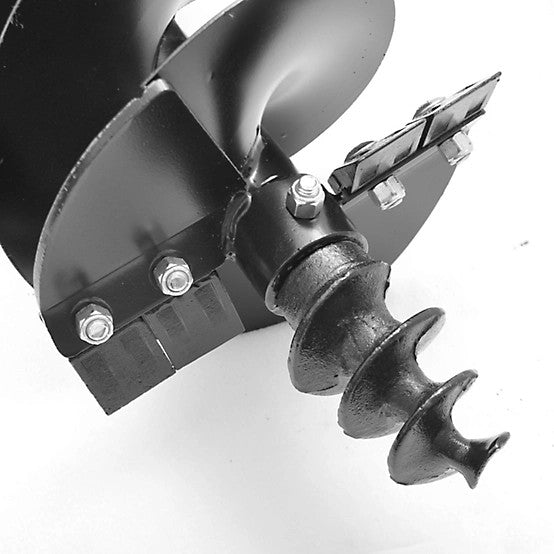

Bolt-On Spiral Tip with Replaceable Teeth
Equipped with a bolt-on spiral tip and four high-carbon steel cutting teeth, which are replaceable for extended life and sustained cutting performance.
-
Reinforced Collar
Heavy-duty input shaft collar increases structural strength, reducing wear and failure under high-torque use.
-
Ideal for 3-Point and Skid Steer Use
Built to handle rugged tasks with tractor 3-point post hole diggers or skid steers using compatible round-shaft auger drives.
Specifications
| Attribute |
Details |
| Brand |
AgKNX |
| Model Number |
23-042 |
| Drive Type |
2 in. Round Shaft with Dual 1/2 in. Bolt Holes |
| Auger Diameter |
12 in. |
| Auger Length |
48 in. |
| Maximum Drilling Depth |
48 in. (4 ft.) |
| Auger Flighting |
Double flighting |
| Flighting Weld Type |
Fully welded (top & bottom surfaces) |
| Cutting Tip |
Bolt-on spiral tip |
| Cutting Teeth |
4 replaceable heavy-duty high-carbon steel |
| Material |
Industrial-grade steel |
| Reinforced Collar |
Yes, with two 1/2 in. bolt holes at 90° apart |
| Product Weight |
58 lb. |
| Product Dimensions (L x W x H) |
48 in. x 12 in. x 12 in. |
| Compatibility |
Tractor Post Hole Diggers, Skid Steers |
| Maximum Tractor Horsepower |
200 hp |
| Minimum Tractor Horsepower |
50 hp |
| Features |
Replaceable Teeth, Reinforced Shaft, Spiral Tip |
| Country of Origin |
Imported |
| Warranty |
1-Year Limited Warranty |
| Recommended Part Number |
23-042 |
| Manufacturer Part Number |
23-042 |
